CYLINDERS AND PUNCHERS FOR PANELS

Perforation cylinders
for metal panels and sheets

Among the machinery for punching sheet metal, switchboards, panels and electrical cabinets, IMB Multifor has hydraulic punching cylinders available and they are operated manually rather than by pumps or power packs. At IMB, we have forty years' experience which helps meet any expectation from our most demanding customers as we custom-make round, square or rectangular punches and dies. For information on all the machinery that we manufacture, please do not hesitate to contact our sales team.

9070 - Manual punching cylinder

Manual punching cylinder. It punches steel sheet from1 to 2 mm but it depends on the diameter of the hole. For aluminium and plastic laminates max. 5 mm thickness. For other material, please contact our Technical Department.
Supplied with a plastic case and complete of spacers for the use of pins of the perforation cylinder 9022.

Specifications
Power	50 kN
Weight	2.2 kg
Round hole max	Ø 72.5 mm
Square hole max	68x68mm
Stroke	20 mm

Slide title

Scrivi qui la tua didascalia

Button

Slide title

Scrivi qui la tua didascalia

Button

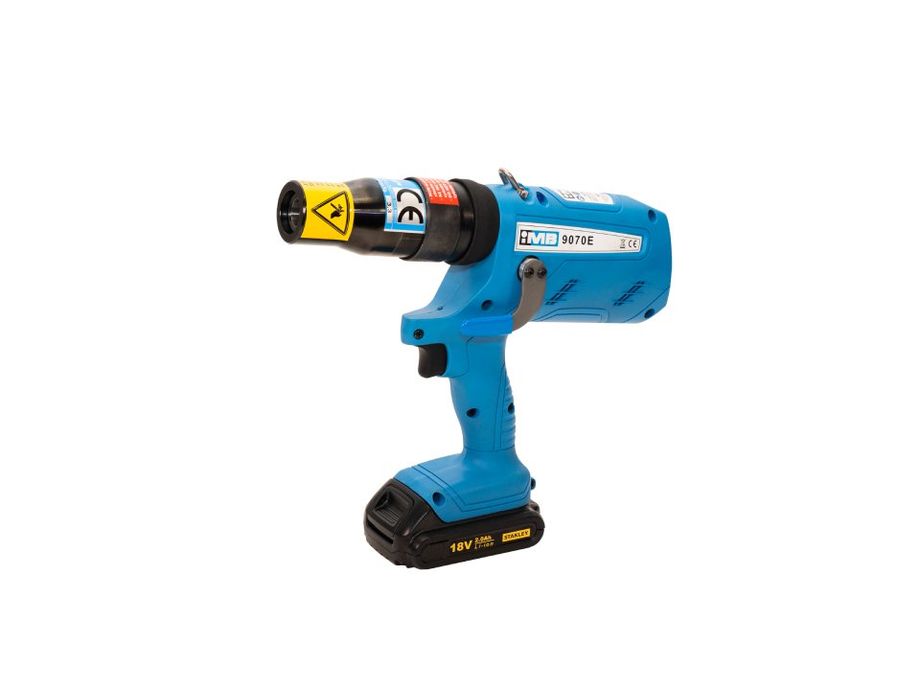

9070E - Cordless punching cylinder

Cylinder with battery, provided with a trigger switch and manual lever for the cylinder return. Tool used for punching panels and sheets of steel max. thickness 2 mm; alluminium and plastic max. 5 mm. Please contact our Technical Department for other material.

Supplied with a plastic case, battery charger and spacers for the use of series pins of our cylinder perforation 9022. Patented Model.

Specifications
Power	63 kN
Weight	3.3 kg
Round hole max	Ø 120 mm
Square hole max	92x92 mm

9022 - Perforation cylinder

For punching metals, inox, aluminium, masonite, plastic laminates panels and sheets

This is a hydraulic cylinder with simple acting made of high quality steel, which ensures maximum efficiency and constant results. It is used in combination with pumps and all our MULTIFOR control units. It works with its relative punches to make holes in sheet metal, aluminium, masonite and plastic laminates.

This tool can use punches from Ø 13 to Ø 170 mm; square punches from n 12 to dia. n 145 mm and rectangular punches of equal dimensions. This tool can punch sheet metal max. thickness 2,5 mm; stainless steel max.2 mm; aluminium
and plastic laminates 5 mm. It is equipped with male rapid connector ready
to be used.

Specifications
Power	130 kN
Maximum working pressure	700 bar
Max stroke	30 mm
Oil capacity to make full stroke	0.080 lt.
Length	200 mm
Diameter	70 mm
Weight	2.9 kg

Slide title

Scrivi qui la tua didascalia

Button

Slide title

Scrivi qui la tua didascalia

Button

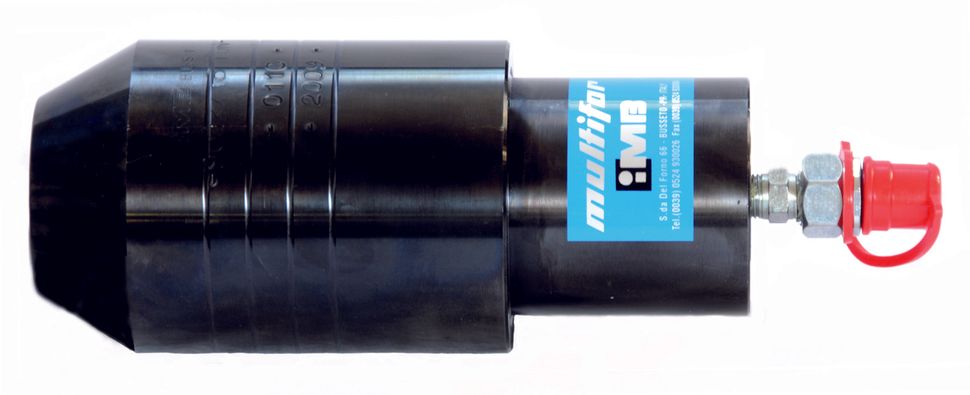

9022/18 ton - Perforation cylinder

It has the same features and the same use of the cylinder 9022 but it has a bigger power and stroke. This tool can punch bigger thicknesses and it realizes special works as for example, holes for drawing. It is equipped with male rapid connector ready to be used. Please contact our IMB Technical Department for any question.
