Air-hydraulic pumps

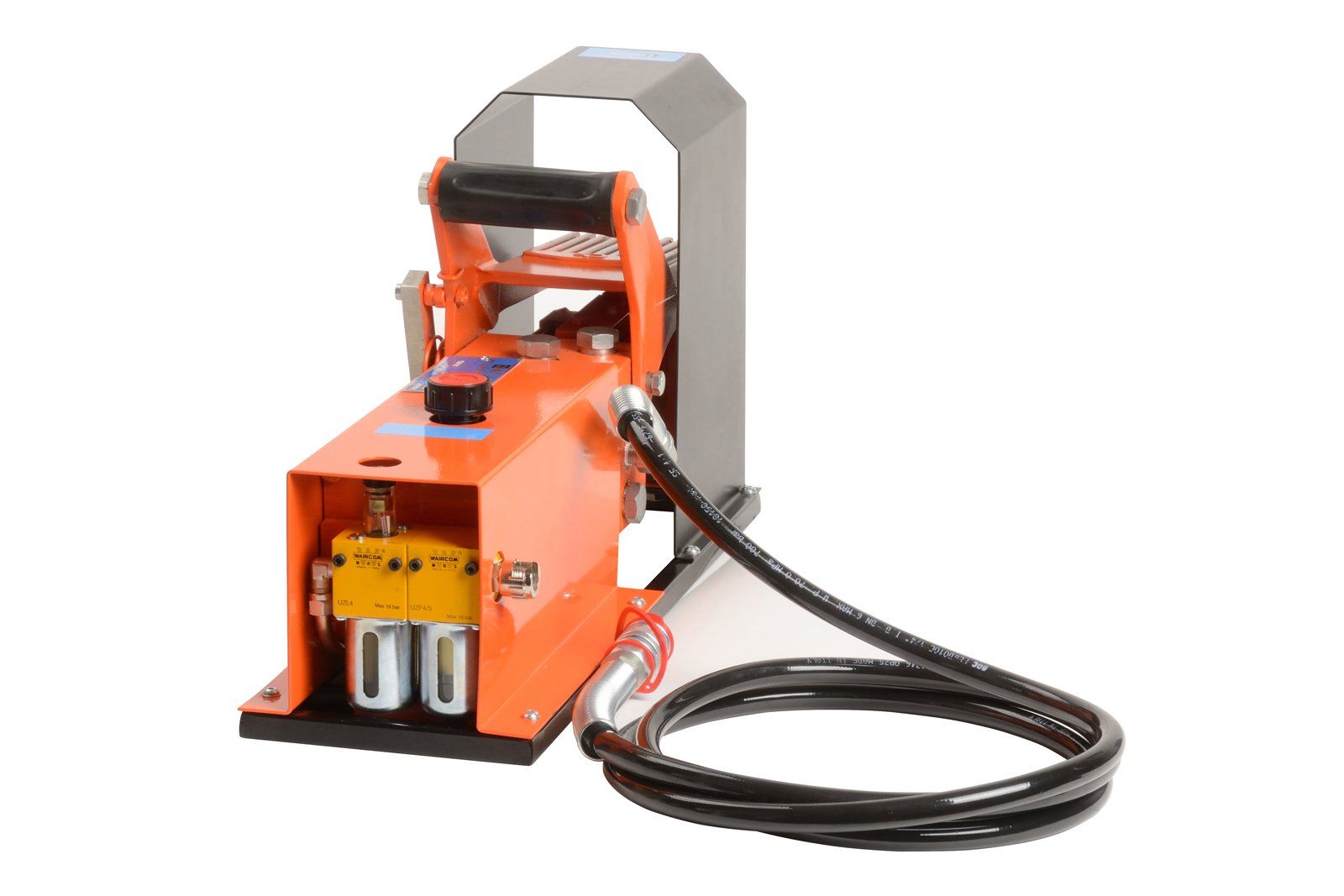

9002 - Pneumatic control unit
The pneumatic pump 9002 is made with the same technology as the foot pump 9000, offering the advantage of more rapid operation as it uses compressed air to work with. It has two speeds, one for the approach and one for the working phase; it has therefore been equipped with double valves and double pistons. It is able to produce 700 bars when supplied with a constant pressure of 7÷10 bars by a suitable compressor or in-house centralised installation.

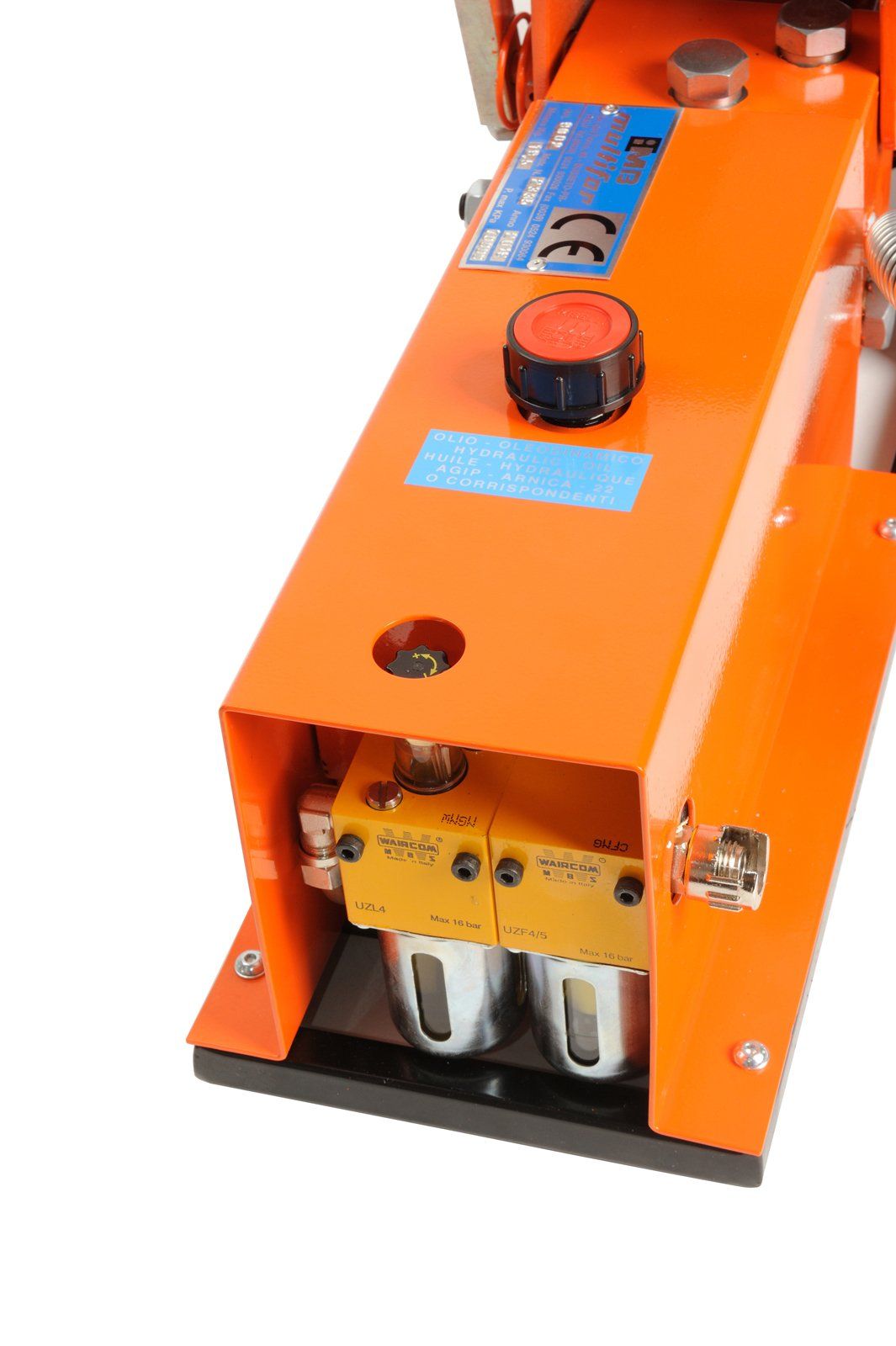

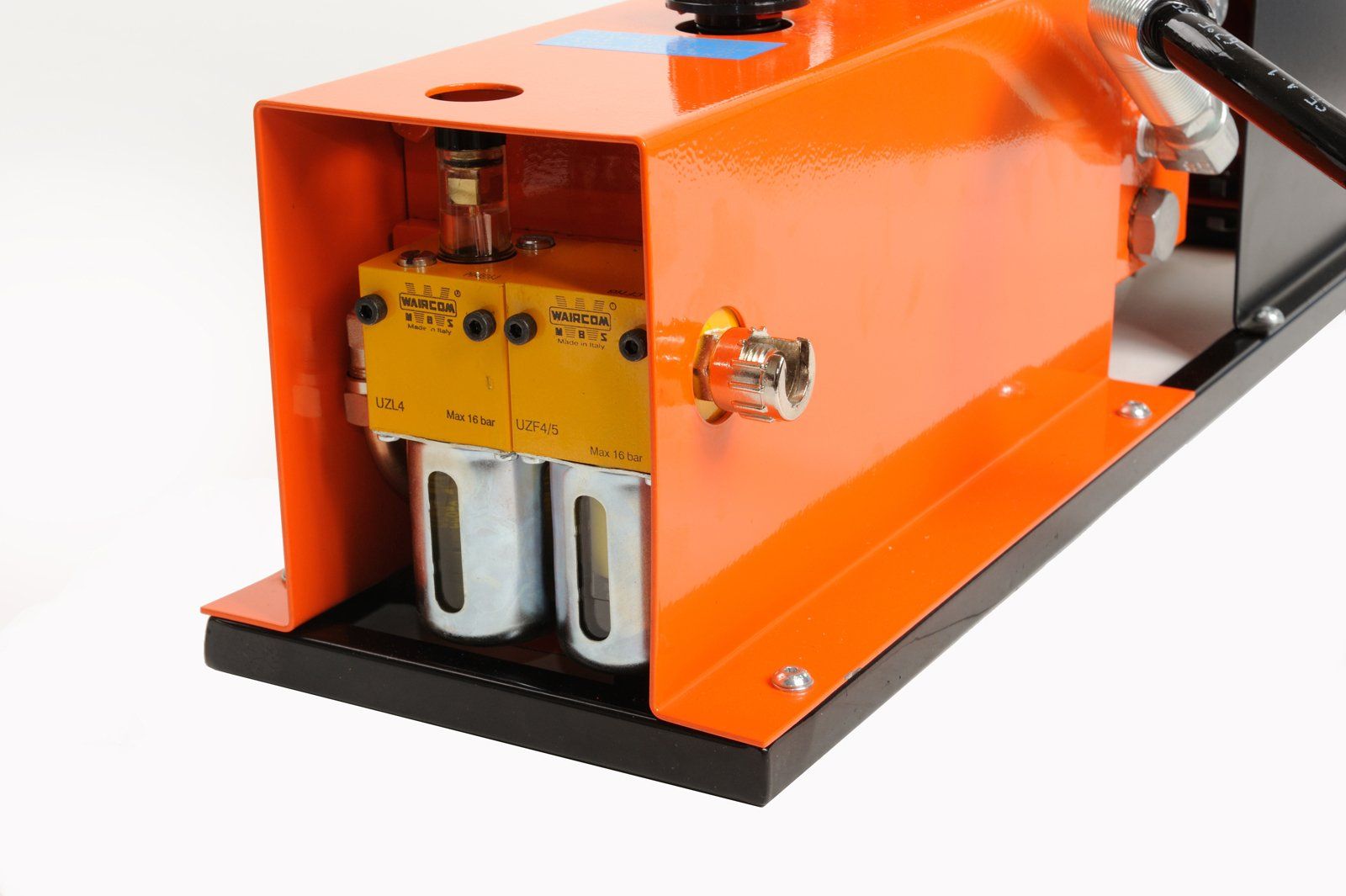

It is equipped with air filter and a lubricator already regulated. For the return, it is sufficient to reverse the movement of the foot pedal control. It is ready to use, after the assembly of the breather plug. It is recommended to have a tank compressor superior to 200 lt. It is supplied with a pipe 2,5 Mt with a female rapid connector and a protection carter.
N.B. Do not use brake or dielectric oil for the transformer.
| Specifications | |
|---|---|
| Max pressure | 700 bar |
| Tank capacity | |
| Max capacity cylinder feed | 1.00 lt |
| Air absorption in continuous service | 48 lt/min |
| Pipe | from 2.5m with female coupling |
| Oil | AGIP ARNICA 22 hydraulic oil (do not use brake oil or transformer dielectric) |
| Weight | 19.5 kg |
9003 - Simplified air-hydraulic pump
The hydraulic pump 9003 offers the advantage of a rapid operation as it uses compressed air. It has two speeds, one for the approach and one for the working phase. It is able to produce 700 bars when supplied with a constant pressure of

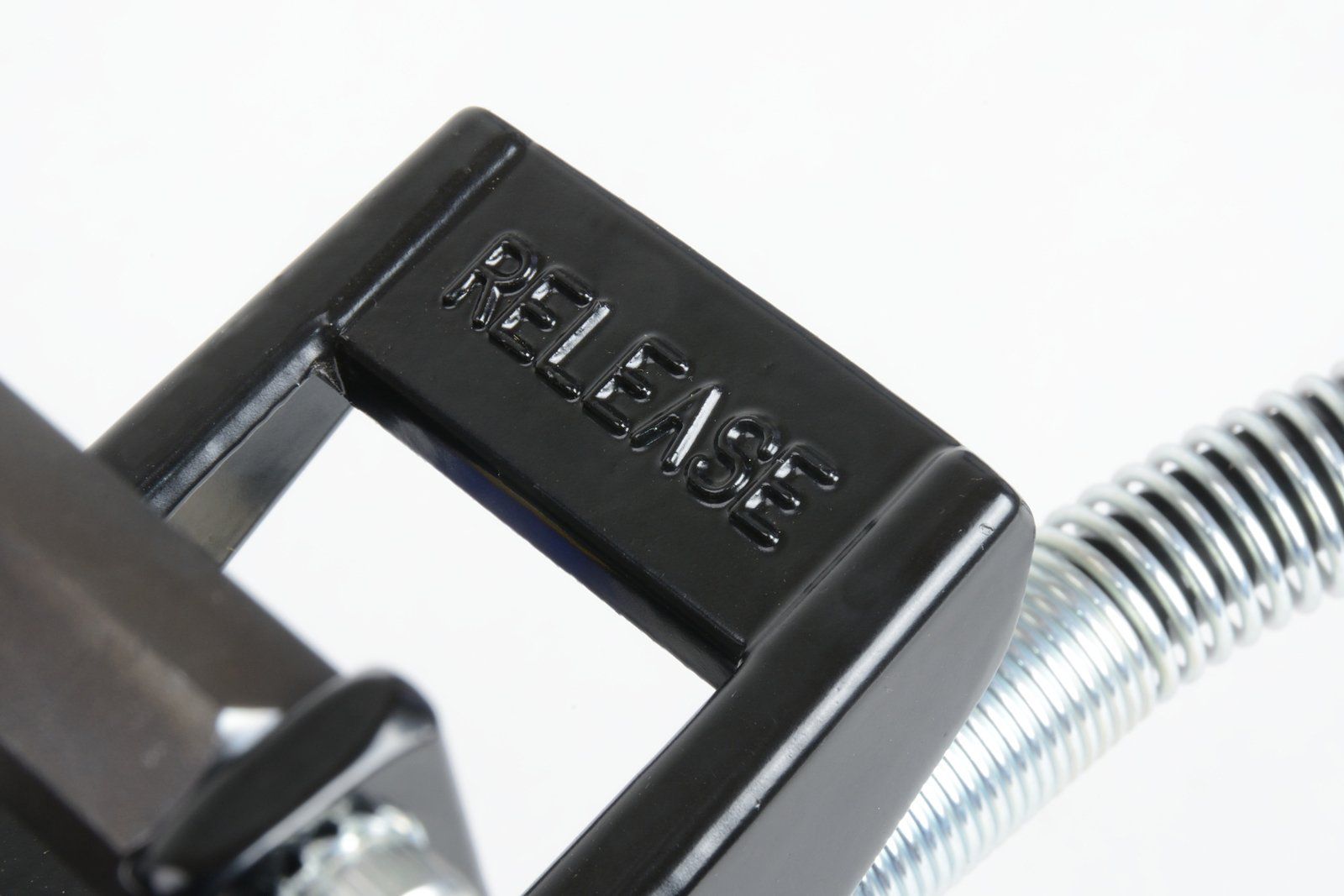

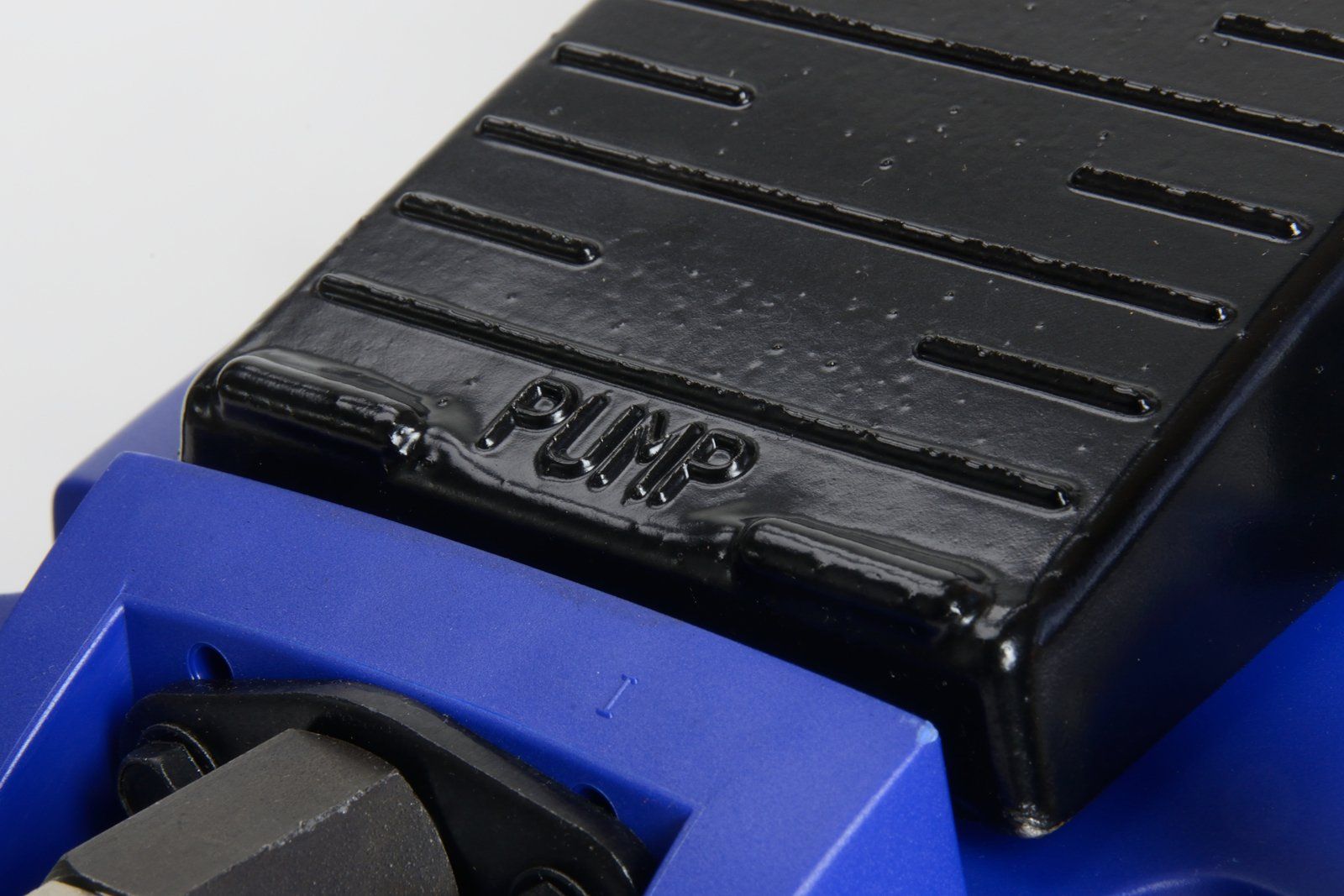

7÷10 bars by a suitable compressor or in-house centralised installation. For the return, it is sufficient to reverse the movement of the foot pedal control.

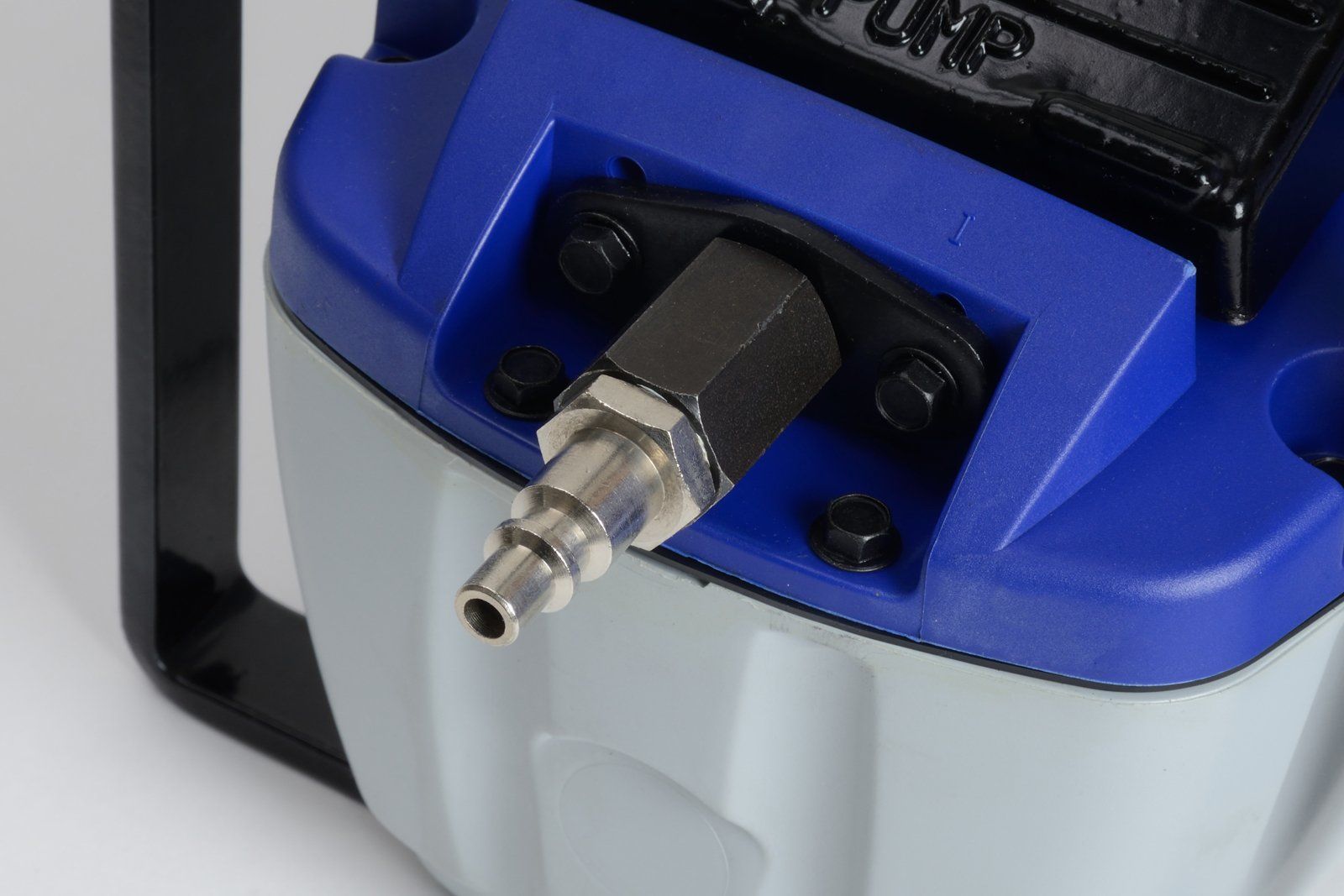

It is ready to use and it is equipped with a universal rapid connector for the air. It is recommended to have a tank compressor superior to 200 lt. Complete with a female rapid connector suitable for all our tools. It is supplied with a pipe 2,5 Mt, a protection carter and a rubber handle for the transport.
N.B. Do not use brake or dielectric oil for the transformer.
| Specifications | |
|---|---|
| Drive | Using pedal |
| Max pressure | 700 bar |
| Tank capacity | 2.4 lt |
| Max noise | 75 dbA |
| Air connection | G 1/4” |
| Air consumption | 400 NI / min |
| Connection to normal PTT | (5-10 bar) |
| Oil | AGIP ARNICA 22 hydraulic oil (do not use brake oil or dielectric transformer oil) |
| Dimensions | 410x295x175 mm |
| Weight | 12 kg |
