Hydraulic punching machines
Our range of Multifor punching machines includes machines specialised in punching various sized boxes, cabinets and electrical panels offering the widest possible range of products to suit our customers' needs.
Contact our offices in Busseto for more information, to get a quote or personalised advice

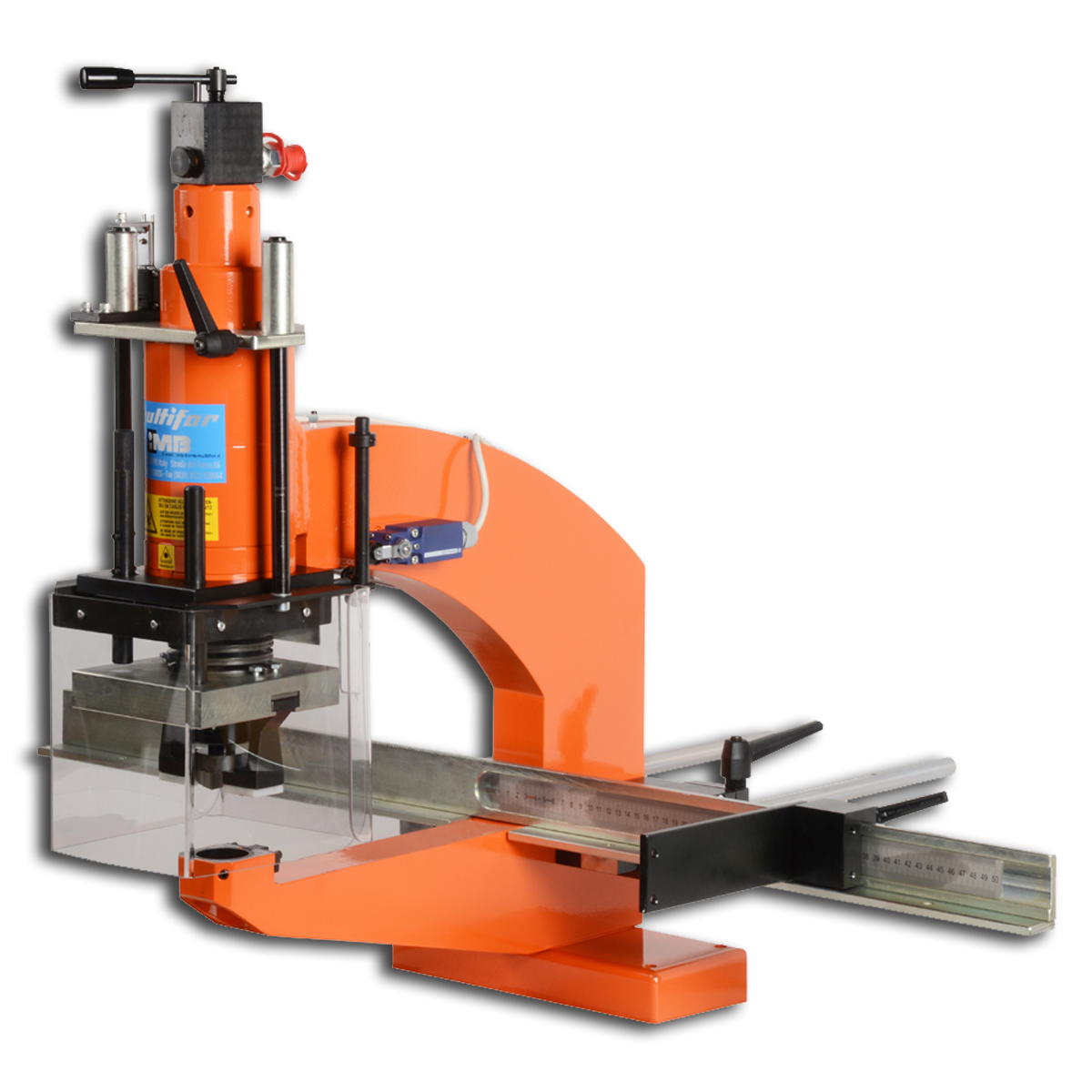

10030L - Hydraulic punching machine for panels and boxes
The punching machine 10030L is planned for making holes of small dimensions; it is very versatile and it can be used for punching either the bottom or the sides of boxes, panels, lids, steel, aluminium, plastic and masonite sheets. Its building characteristics are the same of the other MULTIFOR punching machines. Punches are built in different shaped and sizes according to the power of the machine. This punching machine can be used with all IMB power units: foot pedal and electric control units. In order to reduce the working cycles, it is supplied
with a stroke regulator, which cuts down the gap between punch and die.
It is equipped with safety device and protection cover. It is also possible to assemble an adjustable end stroke during the descent phase.

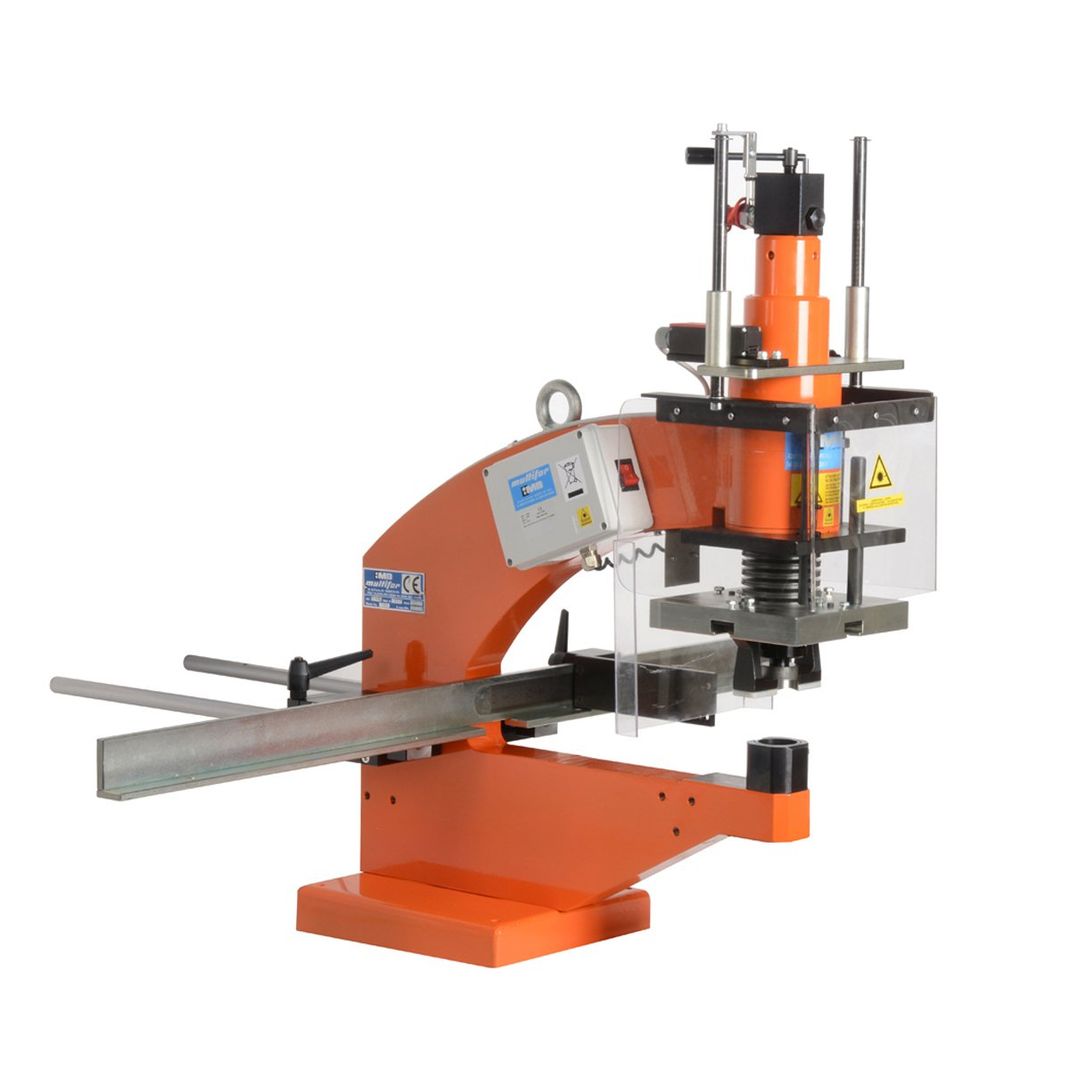

10040L - Simplified hydraulic punching machine
The punching machine 10040L has a system of brackets regulation with simplified X and Y-axis. The technical characteristics of this equipment are between the punching machine 10050L and 10030L. With a new system of flanges, this punching machine can do round, square, rectangular and special punches. This hydraulic punching machine can operate on panel sheets, plastic and stainless boxes. Practical and speedy use to avoid tracing, the machine has a system of guides for the X and Y axis. The punching machine is equipped with bracket regulations, protection carter and micro security. On request, we can build an arm for the panel support.

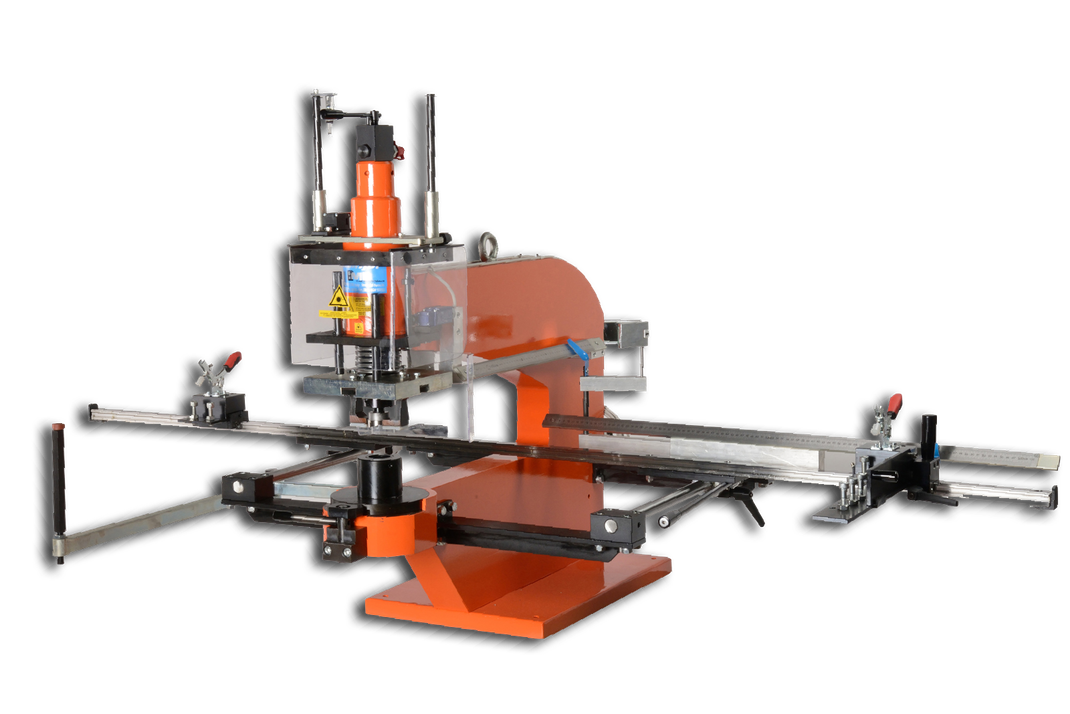

10050 Hydraulic punching machine
The hydraulic punching machine 10050L has the characteristics and performances in between the small 10035L and the big 10090L. In order to reduce the working time, a stroke regulation allows to cut down the opening between punch and die. This equipment is supplied with protection cover and with an electric security micro switch. It is not necessary to make a pre-hole. It is designed to operate with a system of axis X-Y shifting on prismatic guides, sleeves and panel supports complete with locking.

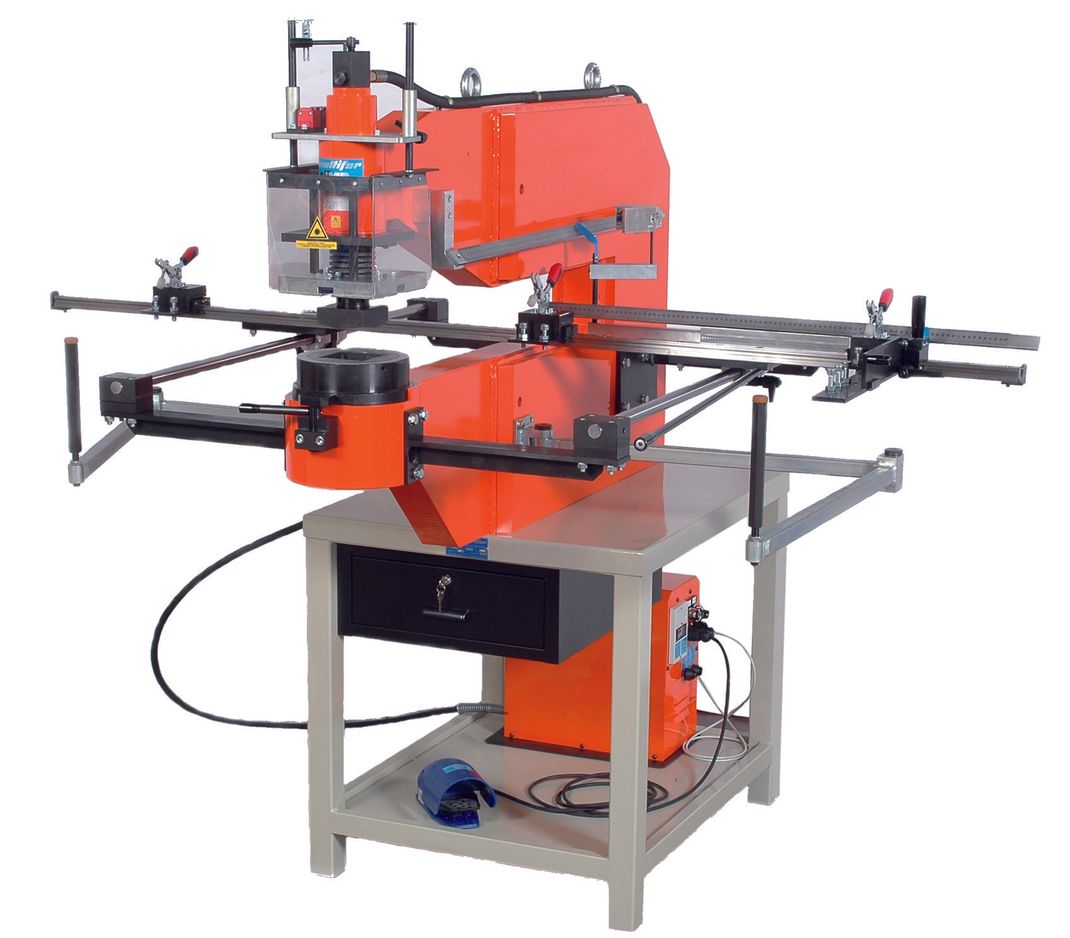

10090EL - 10090ELV
10090L - 10090LV
Hydraulic punching machine 20 Ton
The hydraulic punching machine 10090EL, is a high power machine with a simple system of brackets regulation for X and Y axis. It has the same characteristics and performance of the hydraulic punching machine 10090L. The axis run is for X axe 1000 mm and for Y axe 900 mm. These units are studied exclusively for making holes. They are fast and practical to use, thanks to a special system of guides of axis X and Y. This system avoids tracing and the panel board is held up by a mobile support and fixed on X-Y axis. The version 10090EL has the laser pointing
which indicates the center of the hole on the material to punch. The version 10090ELV has the laser pointing and the visualizer.
Areas of use
Download our hydraulic drill catalogue
Contact us for information on our drills
