Crimping tools
In order to expand the range of equipment that we produce at IMB, we have also included manual, battery or hydraulic drive crimping tools. The available dies are both hexagonal rather than semi-circular or "V" type. The tool can be used to crimp standard cable lugs and connectors, rather than bimetallic, aluminium or medium voltage cables on copper, aluminium or steel cables with sections from 10 to 630mm sq. With our wide range of equipment, you can rely on our products at IMB Multifor for quality crimping for all kinds of terminals, joints and branches.
Contact our team of staff at IMB for further information or to customise your products.
9028 - Manual crimping tool
It is a tool operated with one hand. Its power, capacity and lightness, make a
tool fitted for all type of crimping for copper conductors. It is equipped with a case.
| Specifications | |
|---|---|
| Power | 35 kN |
| Capacity | up to 120 mm2 |
| Piston stroke | adjustable from 5-8 mm |
| hydraulic system | two-speed |
| Valve | automatic, max. pressure heard with a 'click' |
| Piston return | by means of the unloading lever |
| Weight | 1.5 kg |
| Head | with 360° rotation with quick opening and closing |
| Dies | interchangeable |
9038 - Crimping tool with battery
It is a tool operated with one hand. Light and handy, it has the necessary strengh to crimp cables max.section up to 240 mmq. It has a relief valve with automatic return when the crimping is completed and a valve for the manual return.
Available on request, “V” dies with semicircular or circular punch.
| Dimensions | 285x60x270 mm |
| Weight | 3.15 kg with battery |
| Strength developed | 55kN |
| Piston stroke | 13 mm |
| Crimping time | 3-5 sec |
| Battery life | 220 crimps (on 185 mm² sections) |
| Max cable cross-section | 240 mm² |
| Head | with 340° rotation with quick opening and closing |
| Dies | interchangeable |
9026 - Manual C crimping tool 130 kN
It is used for the crimping of: Tube terminals and connectors non-insulated section 10-300 mmq.; tube terminals pre-insulated section 10÷120 mmq.; C connectors section 16÷185 mmq.
| Specifications | |
|---|---|
| Weight | 5.3 Kg |
| Power | 130 Kn |
| Length | 565 mm |
| Width | 160 mm |
| Thickness | 70 mm |
| Handles | insulated |
| Head | swivel: 180 ° |
9025 - “C” Crimping head
This hydraulic head works with all our pumps and control units. It is particularly practical with a frontal opening, which allows an easy positioning of the terminal to crimp. As the technical characteristics are similar to other Multifor tools, maximum reliability is assured. It uses dies for crimping terminals and connectors non-insulated with a section from 10 to 300 mmq; dies for crimping tube terminals pre-insulated section 10÷120 mmq; and for “C” connectors section 10÷185 mmq.
| Specifications | |
|---|---|
| Power | 130 kN |
| Maximum working pressure | 700 bar |
| Stroke | 22 mm |
| Oil capacity for full stroke | 0.040 lt |
| Length | 235 mm |
| Width | 140 mm |
| Thickness | 78 mm |
| Weight | 4.5 Kg |
9024 - “U “ head for the crimping of tube terminals and connectors
This hydrailic head crimps tube terminals on cables from 10 to 400 mmq.
Due to its compact size, the cramping tool is very practical. It has been realized with high quality steel. It is used with all our pumps and electric units. This head with different dies can crimp tube terminals ,”C” connectors, cable joints and
shunts. It is supplied with male rapid connector, ready to use.
| Specifications | |
|---|---|
| Power | 200 kN |
| Maximum working pressure | 700 bar |
| Stroke | 23 mm |
| Oil capacity for full stroke | 0.080 lt |
| Length | 250 mm |
| Width | 90 mm |
| Weight | 5.6 Kg |
9036 - “U “ head for the crimping of tube terminals and connectors
This hydrailic head crimps tube terminals on cables from 10 to 630 mmq. Due to its compact size, the cramping tool is very practical. It has been realized with high quality steel. It is used with all our pumps and electric units. This head with different dies can crimp tube terminals, “C” connectors, cable joints and shunts.
It is supplied with male rapid connector, ready to use.
| Specifications | |
|---|---|
| Power | 200 kN |
| Maximum working pressure | 700 bar |
| Stroke | 30 mm |
| Oil capacity for full stroke | 0.100 lt |
| Length | 290 mm |
| Width | 90 mm |
| Weight | 5.9 Kg |

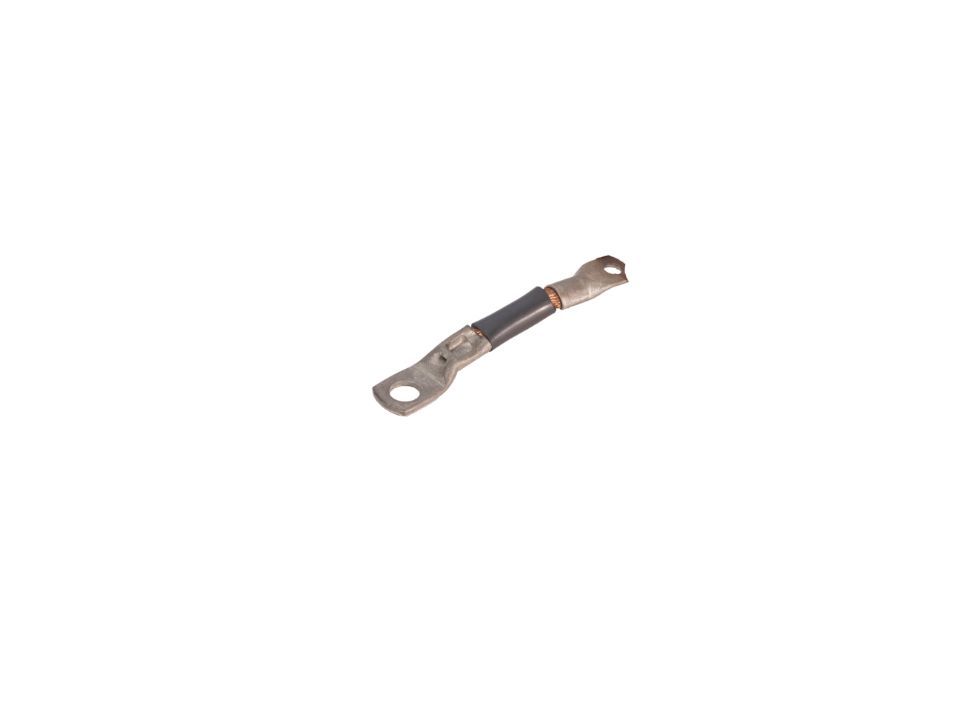

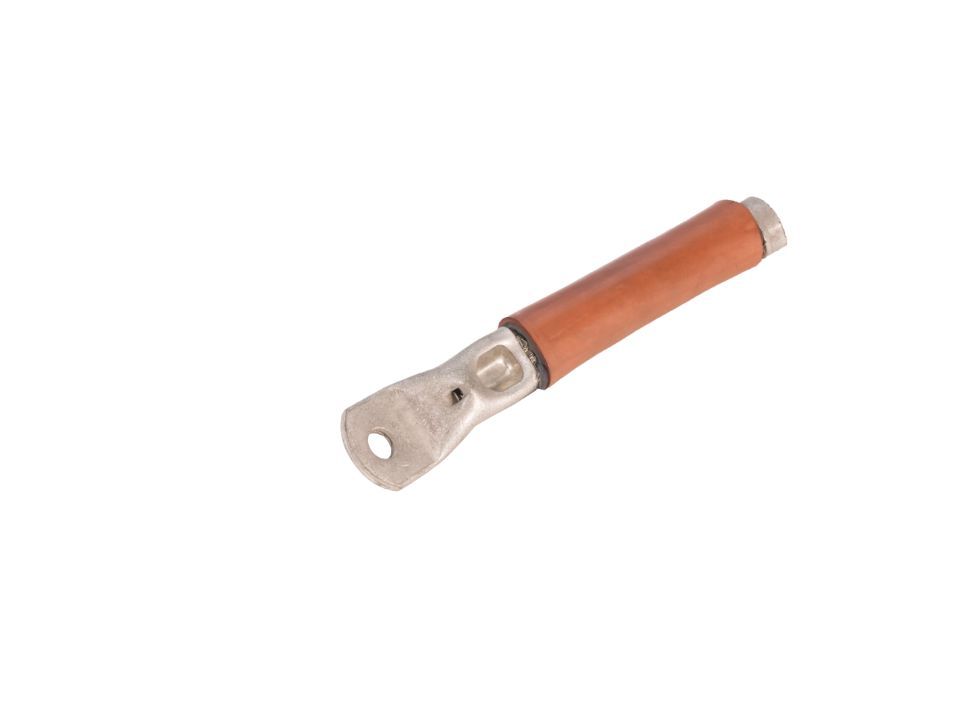

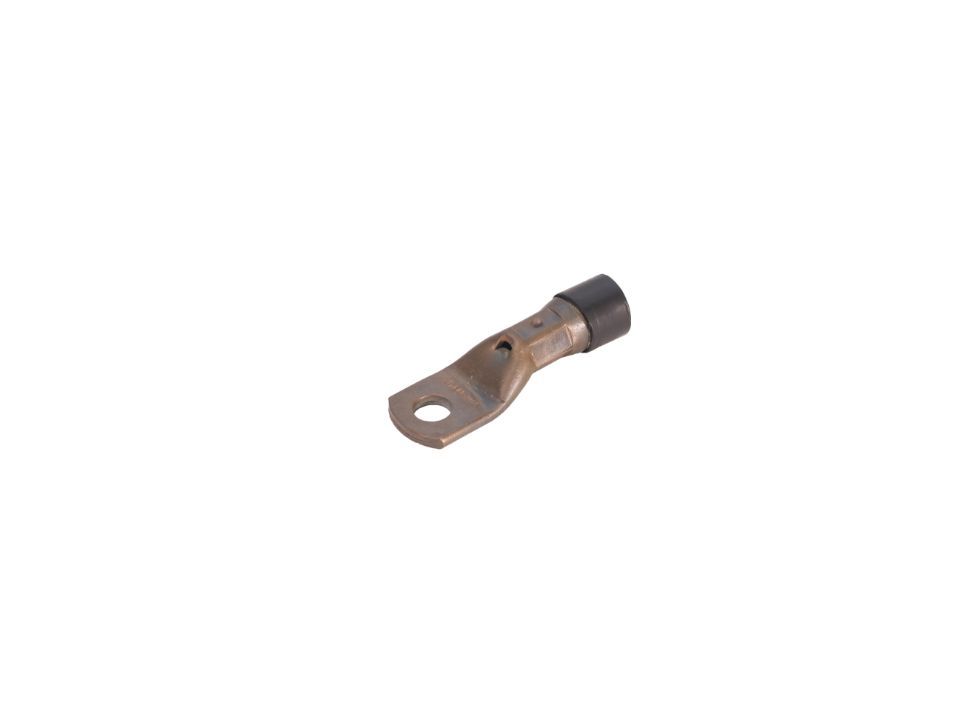

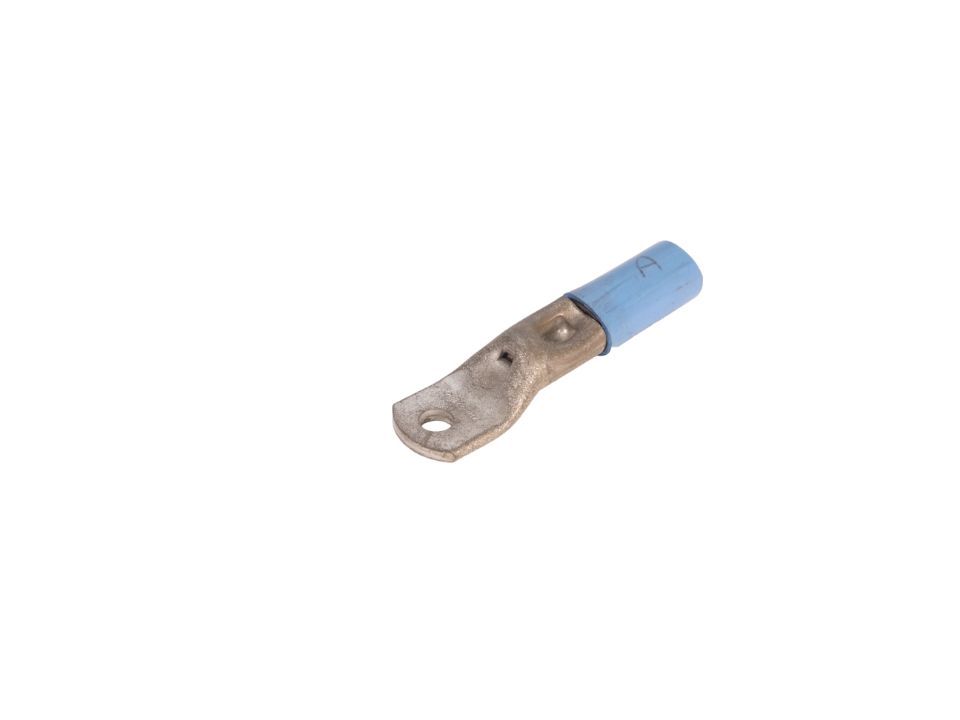

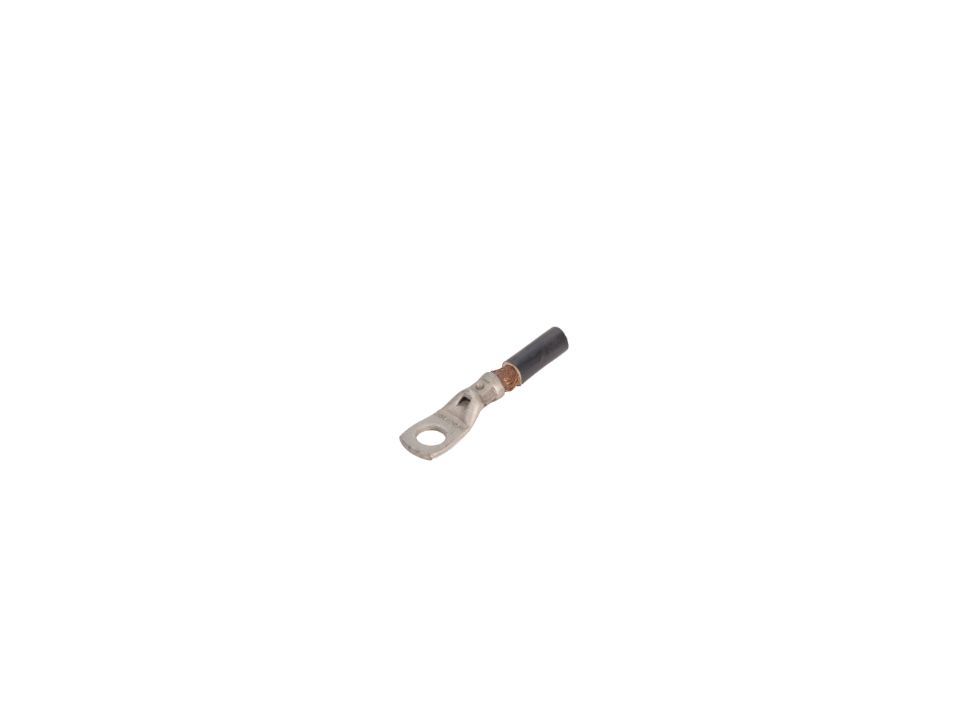

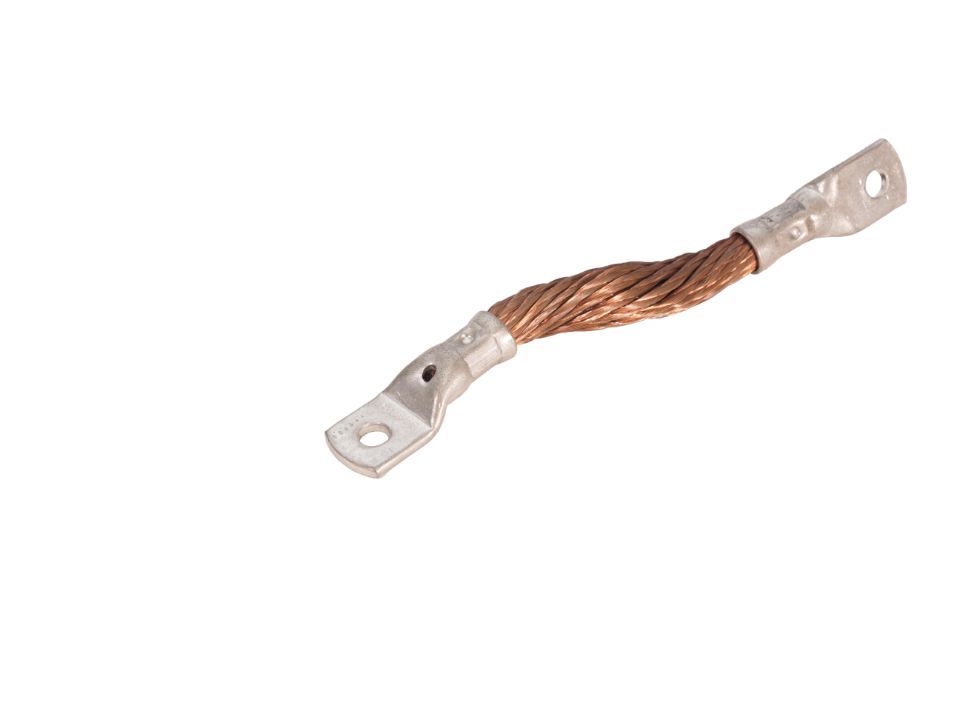

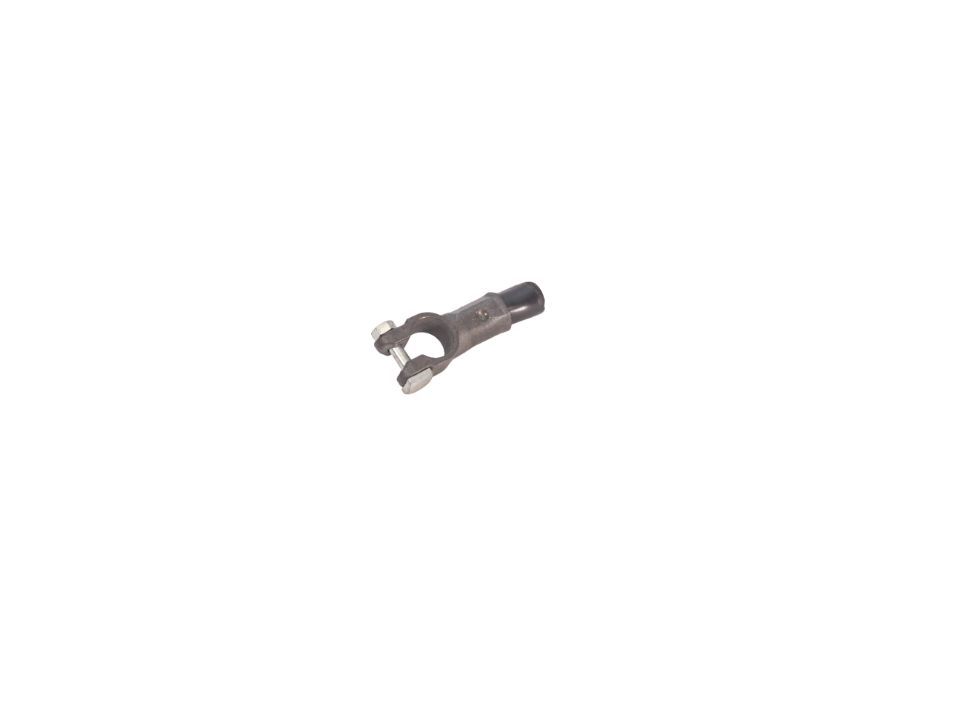

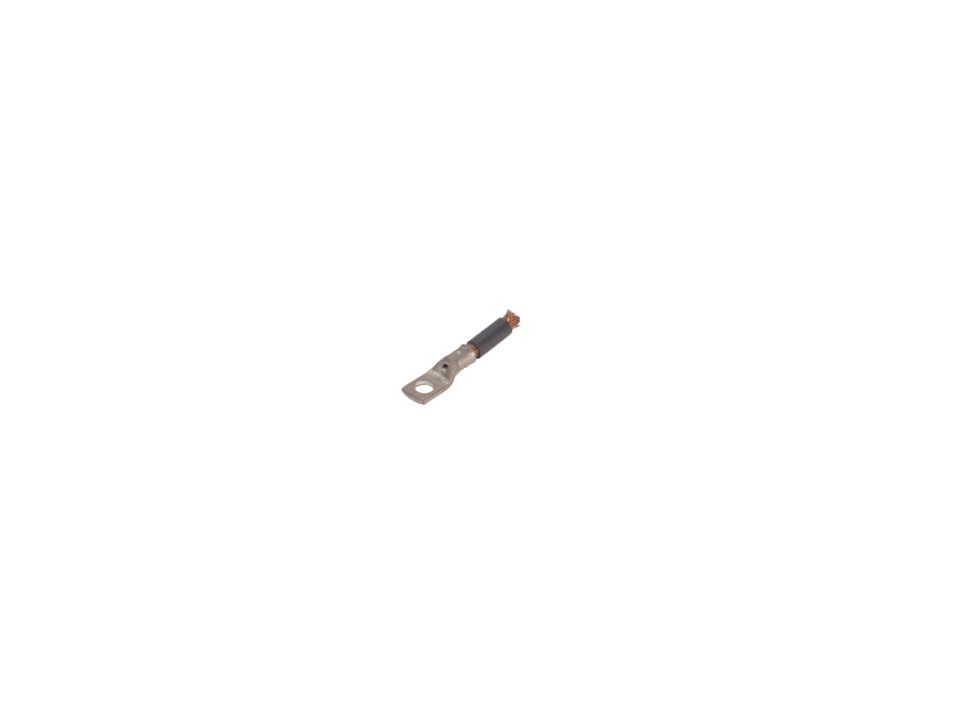

Areas of use
Download our complete crimping tools catalogue
Fill out our contact form for information on crimping tools for copper conductors
