PUNCHING TOOLS FOR BOXES

Punching cylinders for boxes

7053 - Punching tools for

boxes, with adjustments for positioning

It has the same characteristics of the other punching cylinders for boxes, but this tool has the rulers with sliders for repetitive working. These rulers simplify the work.
It can be used also without adjustments.

It is an easy tool for punching in particularly uncomfortable positions. It can be used also for cable channels, panels, panel boards already in operation. It is very easy to disassemble the brackets.

Slide title

Scrivi qui la tua didascalia

Button

Punching cylinders for boxes - Portable and rapid tool, without pre-hole

7050

It is a handy and rapid tool, particularly indicated for the punching of plastic boxes with internal ribbing. It doesn’t need the pre-hole and the extraction of the punch is easy. It is composed by
a hydraulic system. It is equipped with a particularly head realized to enter in the little spaces between the ribbing. It is used in workshops or on-site. Patented Model

Specifications
Power	28 kN
Weight	3.7 Kg
Head rotation	290°
Internal depth	50 mm
Round hole max	Ø 32.5 mm
Sheet thickness	1.2 mm
Max plastic thickness	3 mm

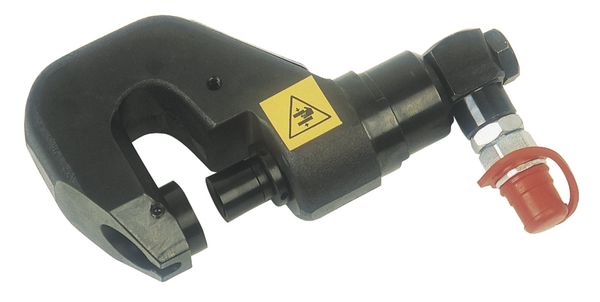

7051

It is a handy and rapid tool, particularly indicated for the punching of plastic boxes with internal ribbing. It doesn’t need the pre-hole and the extraction of the punch is easy. It is composed by a hydraulic system which works with any of our power units. It is equipped with a particularly head realized to enter in the little spaces between the ribbing. It is used in workshops or on-site. Patented Model

Specifications
Power	34 kN
Weight	3.2 Kg
Head rotation	360°
Internal depth	50 mm
Round hole max	Ø 32.5 mm
Sheet thickness	1.2 mm
Max plastic thickness	3 mm

7052

It is a handy and rapid tool, particularly indicated for the punching of plastic boxes with internal ribbing. It doesn’t need the pre-hole and the extraction of the punch is easy. It is composed by a hydraulic system which works with a battery 18 V. It is equipped with a particularly head realized to enter in the little spaces between the ribbing.
It is used in workshops or on-site. Patented Model
