Cable cutters for copper and aluminium

The cable cutting shears are hydraulically operated tools for cutting copper and aluminium
cables of different sizes or compositions, plain or insulated with PVC covering up to 800-mmq
section. These tools are also availble with insulated version with grounding cable.
All the cable cutting shears are equipped with protection carter.

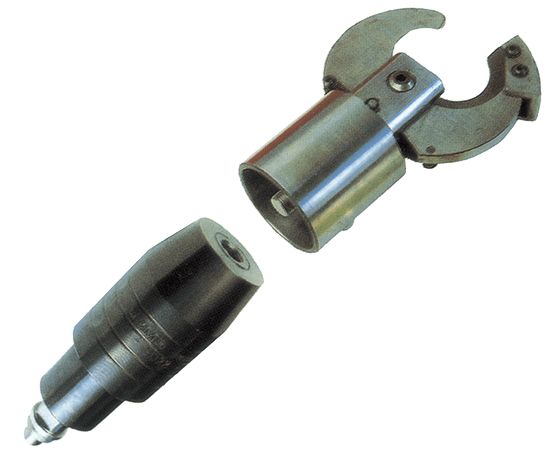

9030 - Cable cutting shears for perforation cylinder

The 9030 cable cutting shears works with the cylinder 9022 and with all our power units. It is sufficient to screw well its pin on the cylinder before starting to work.

Specifications
Length	410 mm
Width	150 mm
Cables	Ø from 10 to 48 mm
Weight with cylinder	5.2 kg
Power	80 kN
Max pressure of work	650-700 bar
Oil capacity to make full stroke	0.080 lt

Slide title

Scrivi qui la tua didascalia

Button

Slide title

Scrivi qui la tua didascalia

Button

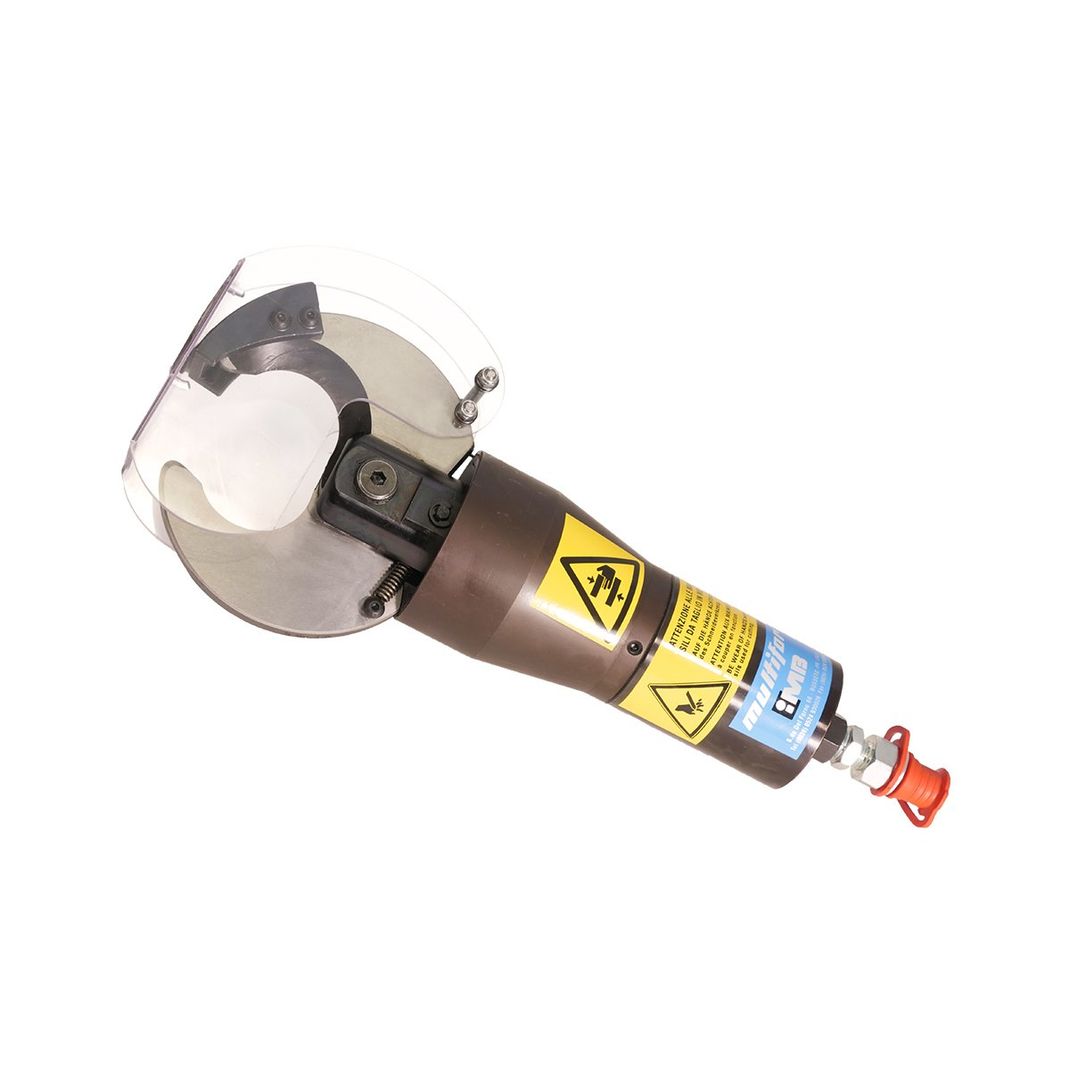

9032 - Hydraulic cable cutter

The cable cutting shears 9032 cuts cables until Ø 48 mm. Thanks to its rapid connector, it works with all our power units. It is equipped with a clear protection carter which allows to see the working area. It is handy thanks to its light weight.

Specifications
Length	300 mm
Width	150 mm
Cables	Ø from 10 to 48 mm
Weight with cylinder	5.2 kg
Power	80 kN
Max pressure of work	650-700 bar
Oil capacity to make full stroke	0.050 lt

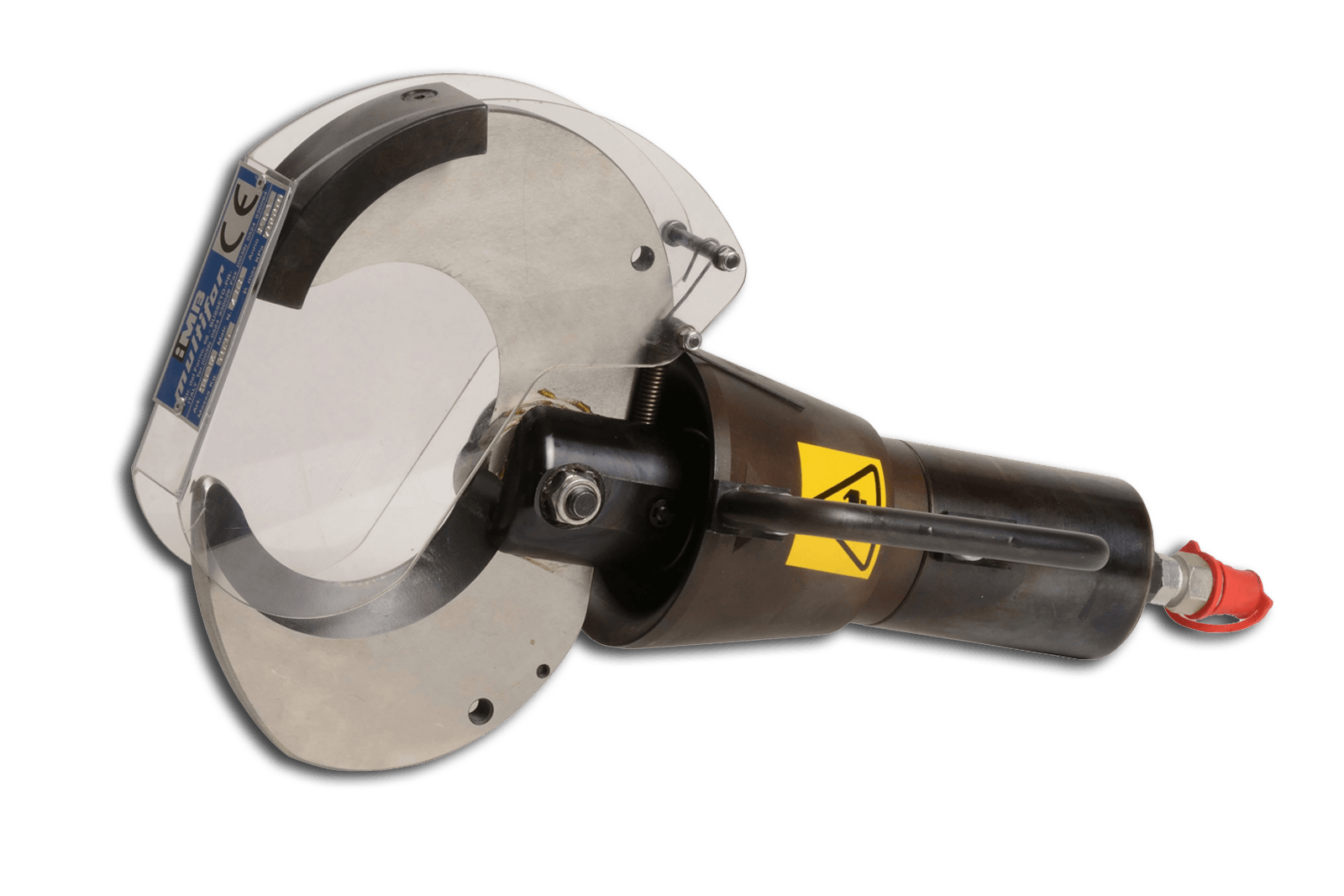

9034 - Hydraulic cable cutting shears for copper and aluminium

The cable cutting shears 9034 cuts cables until Ø 95 mm. Thanks to its rapid connector, it works with all our power units. It is equipped with a clear protection carter which allows to see the working area. The transport is easy thanks to its handle. This cable is an insulated version with grounding cable.

Specifications
Length	400 mm
Width	270 mm
Cables	Ø from 30 to 95 mm
Weight with cylinder	10.1 kg
Power	150 kN
Max pressure of work	650-700 bar
Oil capacity to make full stroke	0.140 lt

Slide title

Scrivi qui la tua didascalia

Button

Slide title

Scrivi qui la tua didascalia

Button

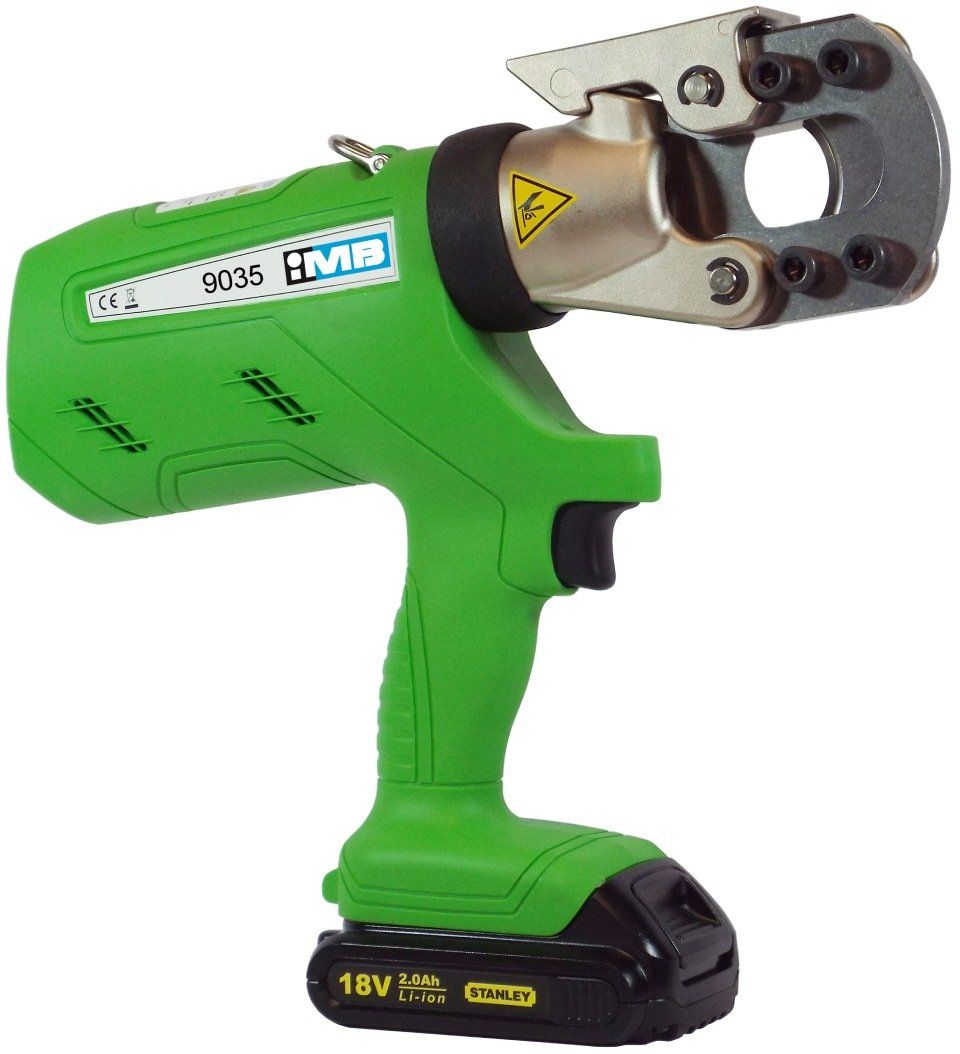

9035 - Cordless cable cutters

The cable cutting shears with battery 9035 cuts cables until Ø 25 mm. Thanks to its weight and to its balance, it is easy to handle it with a hand. The battery has an autonomy of about 150 cuts (depending on working conditions). It is equipped with a plastic case, a battery charger and a battery 18 V 2Ah. A second battery can be delivered on demand.

Specifications
Length	300 mm
Width	75 mm
Height	280 mm
Power	55 kN
Weight	3.4 kg
Cables	Ø 25 mm max
Battery type	18V 2.0Ah
Battery life	approx. 150 cuts

High-quality cable cutters with curved and interchangeable blades

9980

For copper and aluminium cables up
to Ø 20 mm and max. section for connectors 120 mmq.
Lenght 370 mm
Weight 0,650 Kg
Button
9981

For copper and aluminium cables up
to Ø 35 mm and max. Section for connectors 180 mmq.
Lenght 530 mm
Weight 1,5 Kg
Button
9982

For copper and aluminium cables up
to Ø 50 mm and max section for connectors 500 mmq.
Lenght 780 mm
Weight 3,2 Kg.
Button

High-quality cable cutters with insulated handles

9983

For copper and aluminium cables up to Ø 20 mm and max section for connectors 120 mm2.
Length 370 mm
Weight 0.750 Kg
Button
9984

For copper and aluminium cables up to Ø 35 mm and max section for connectors 180 mm2.
Length 530 mm
Weight 1.8 Kg
Button
9985

For copper and aluminium cables up to Ø 50 mm and max section for connectors of 500 mm2.
Length 780 mm
Weight 3.8 Kg
Button

Forged blade cable cutting shears

9986

It cuts aluminium and copper cables up to Ø 38 mm. Maximum section 180 mmq.
Weight 0,8 Kg
Button
9987

It cuts aluminium and copper cables up to Ø 45 mm. Maximum section 240 mmq.
Weight 0,9 Kg
Button
9988

It cuts rigid wire ropes up to Ø14 mm and flexible metal cables up to Ø16 mm.
Weight 0,8 Kg
