Manually operated pumps

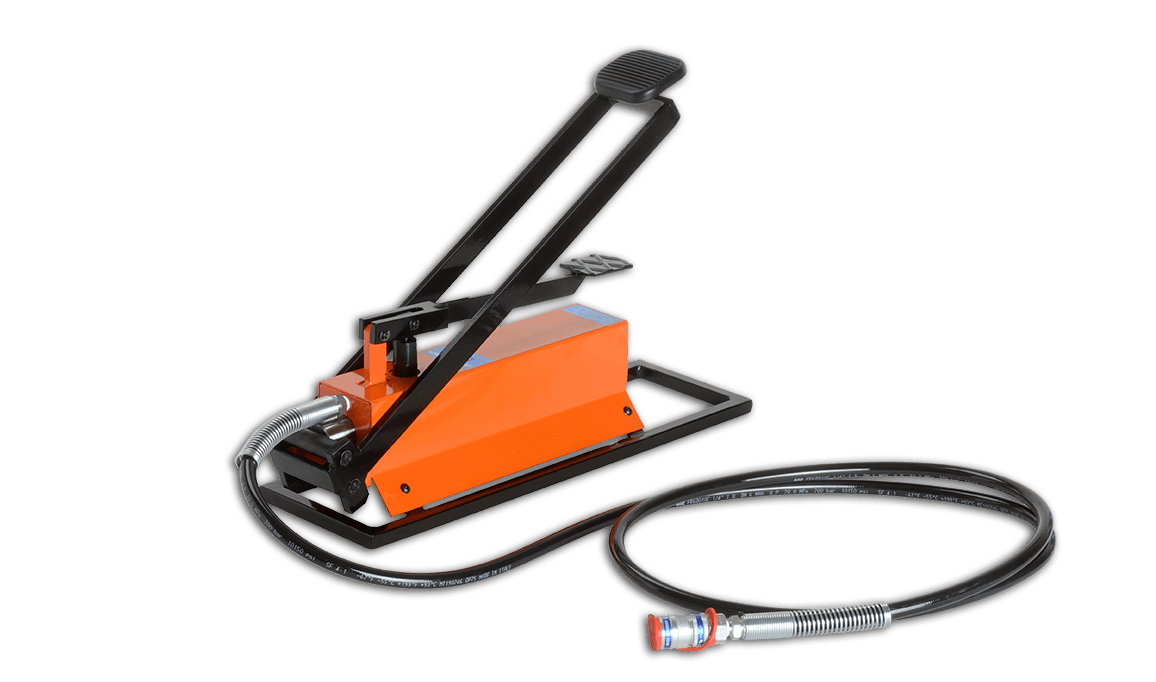

9000 - Foot pump
This is a hydraulic pump made completely of steel, whose internal components - pumping elements and valves - are all made of special hardened, temperated and rectified steel. It has two speeds: one is the approach speed and the second is the working speed. It has double pistons and double valves etc.
When this pump is used with crimping cylinders 9024 and 9036, its release valve enters in action. Infact when it reaches the pressure of 700 Bars, this valve allows the automatic return at zero. This operation facilitates the appropriate push foot pedal for piston return. Supplied ready to use.
| Specifications | |
|---|---|
| Maximum working pressure | 700 bar |
| Oil tank capacity | 0.600 lt |
| Max capacity cylinder feed | 0.380 lt |
| Pipe | from 2.50m with female coupling |
| Oil | AGIP ARNICA 22 hydraulic oil |
| Weight | 14.5 kg |

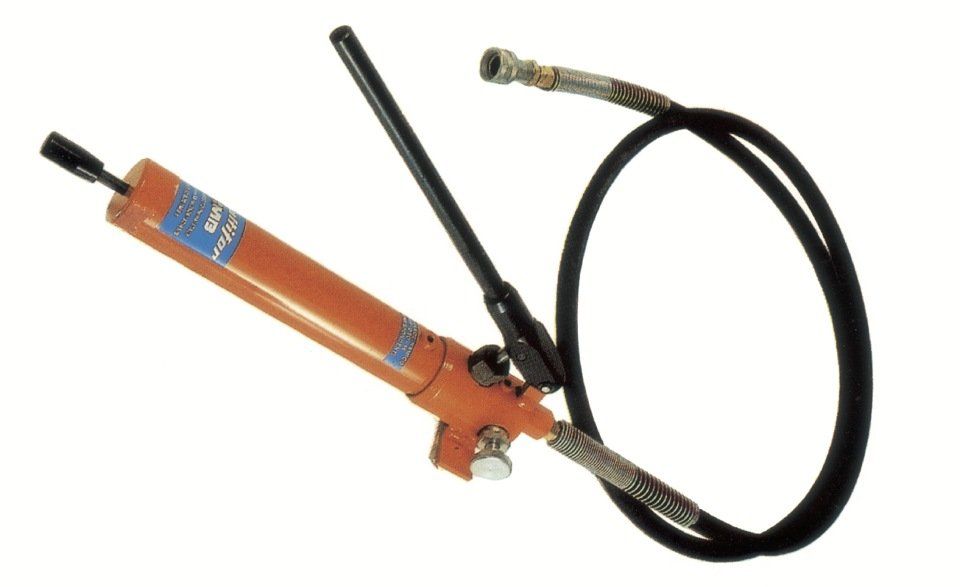

9001 - Hand pump
This is a hydraulic pump of simple construction, which is very light and easy to use. It is ready to use. It is designed for small production or where there are difficult positions to reach.
| Specifications | |
|---|---|
| Maximum working pressure | 450 bar |
| Oil tank capacity | 0.250 lt |
| Max capacity cylinder feed | 0.200 lt |
| Pipe | from 2.5m with female coupling |
| Oil | AGIP ARNICA 22 hydraulic oil |
| Weight | 5.5 kg |
Download our complete power units, pumps and control units catalogue
Contact our Busseto office for information on pumps
