Electric & cordless control units
9008/9009/9010 - Electric control units with options
These are high-pressure power units with high-precision radial piston pumps. They have been built with an electric motor in oil bath, widely tested features that ensure maximum reliability. They are available in various designs.
They come equipped with:

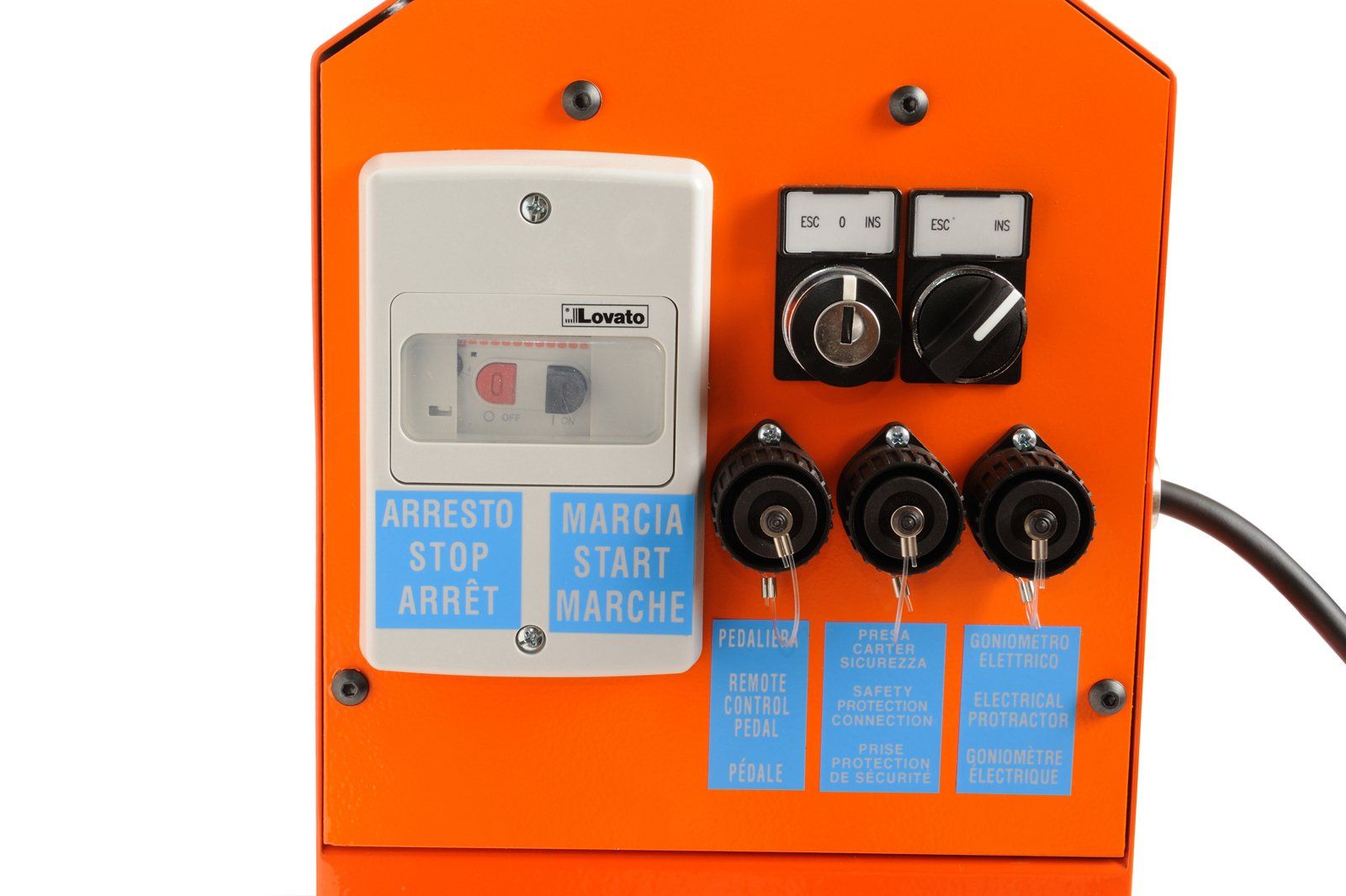

- Electrical system on printed circuit with protection fuse
- Motor protection switch

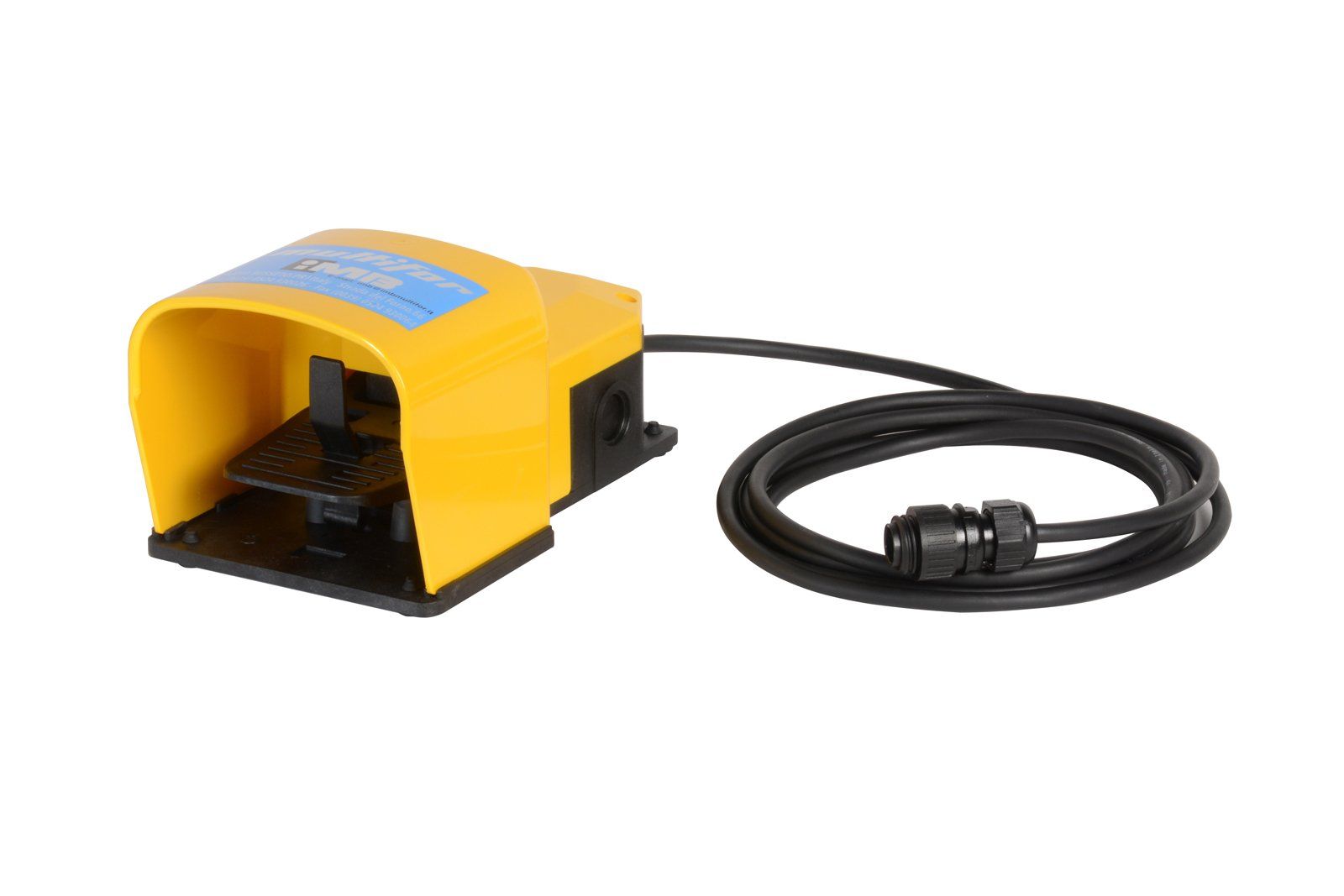

- Built-in control pedal

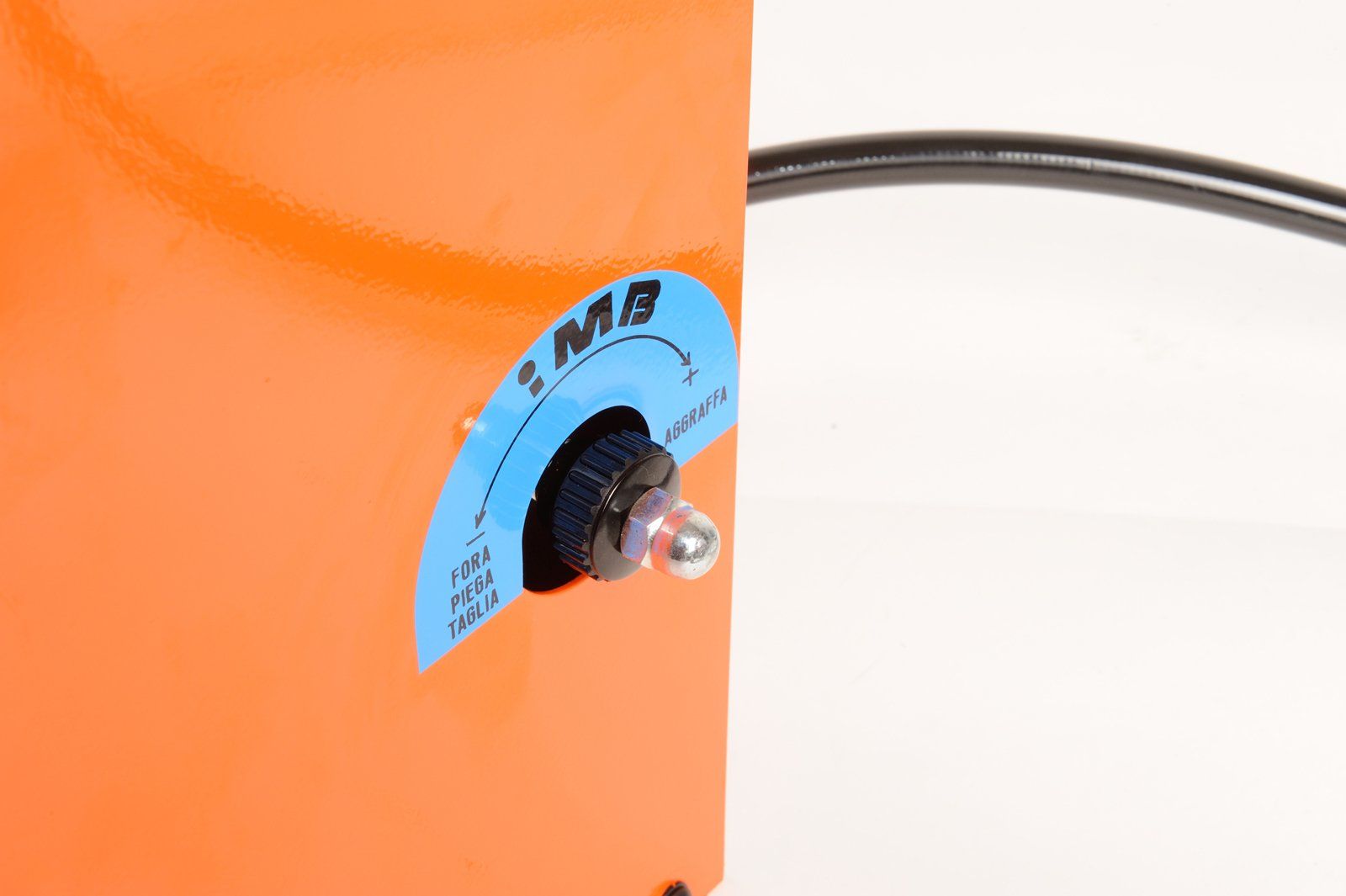

- Key selector switch to manage the safety system
- Pressure switch with adjustable electrical contacts which automatically stops when the pressure is reached and cylinder is subsequently returned
- Electronic protractor socket
- Safety casing socket
- Remote control pedal socket
- 24V direct current controls.
All control units come complete and ready for use, equipped with a 2.5m hose, female coupling, with AGIP ARNICA 22 oil and protective guard socket.
| 9008 Specifications | |
|---|---|
| Power supply voltage | 240V single phase |
| Power | 0.55 kW |
| Max working pressure | 700 bar |
| Pressure | adjustable from 400-700 bar |
| Oil tank capacity | 2.7 lt |
| Max cylinder feed | |
| Type of oil | Agip Arnica 22 |
| Weight | 33 kg |
| Dimensions | |
| Length | 420 mm |
| Width | 235 mm |
| Height | 450 mm |
| 9009 Specifications | |
|---|---|
| Power supply voltage | 400 V three-phase |
| Power | 0.75kW |
| Max working pressure | 700 bar |
| Pressure | adjustable from 400-700 bar |
| Oil tank capacity | 2.7 lt |
| Max cylinder feed | 2.2 lt |
| Type of oil | Agip Arnica 22 |
| Weight | 33 kg |
| Dimensions | |
| Length | 420 mm |
| Width | 235 mm |
| Height | 450 mm |
| 9010 Specifications | |
|---|---|
| Power supply voltage | 400 V three-phase |
| Power | 1.4 KW |
| Max working pressure | 700 bar |
| Pressure | adjustable from 400-700 bar |
| Oil tank capacity | 5.4 lt |
| Max cylinder feed | 4.1 lt |
| Type of oil | Agip Arnica 22 |
| Weight | 36 kg |
| Dimensions | |
| Length | 420 mm |
| Width | 260 mm |
| Height | 470 mm |
9013/9014/9015 - Electric control units without options
9013 Electric control unit
Basic electric control unit, 240V single-phase power supply, with 24V DC controls, remote motor safety device, micro-socket, protection casing for punching machines
| 9013 Specifications | |
|---|---|
| Power supply voltage | 240V single phase |
| Power | 0.55 kW |
| Max working pressure | 700 bar |
| Pressure | adjustable from 400-700 bar |
| Oil tank capacity | 2.7 lt |
| Max cylinder feed | 2.2 lt |
| Type of oil | Agip Arnica 22 |
| Weight | 33 Kg |
| Dimensions | |
| Length | 420 mm |
| Width | 240 mm |
| Height | 450 mm |
9014 Electric control unit
Basic electric control unit, 400V three-phase power supply, with 24V DC controls, remote motor safety device, micro-socket, protection casing for punching machines
| 9014 Specifications | |
|---|---|
| Power supply voltage | 400 V three-phase |
| Power | 0.75kW |
| Max working pressure | 700 bar |
| Pressure | adjustable from 400-700 bar |
| Oil tank capacity | 2.7 lt |
| Max cylinder feed | 2.2 lt |
| Type of oil | Agip Arnica 22 |
| Weight | 33 kg |
| Dimensions | |
| Length | 420 mm |
| Width | 240 mm |
| Height | 450 mm |
9015 Electric control unit
Basic electric control unit, 400V three-phase power supply, with 24V DC controls, remote motor safety device, micro-socket, protection casing for punching manchines
| 9015 Specifications | |
|---|---|
| Power supply voltage | 400 V three-phase |
| Power | 1.4 KW |
| Max working pressure | 700 bar |
| Pressure | adjustable from 400-700 bar |
| Oil tank capacity | 5.4 lt |
| Max cylinder feed | 4.1 lt |
| Type of oil | Agip Arnica 22 |
| Weight | 36 kg |
| Dimensions | |
| Length | 420 mm |
| Width | 260 mm |
| Height | 470 mm |
| Specifications | |
|---|---|
| Power supply voltage | 230V single-phase |
| Power | 0.70 KW |
| Max working pressure | 700 bar |
| Oil capacity | 5 lt |
| Max cylinder feed capacity | 3 lt |
| Type of oil | Agip Arnica 22 |
| Weight | 24 kg |
9005 - Simplified electrical control unit
The simplified electrical control unit 9005 has the same features and moving elements as the other control units.
This simplified version does not have a casing, pressure switch, connectors for accessories or a specific system card. It comes with direct control and a standard foot pedal.
Interchangeable with all our power units and can be used with all the equipments less than our hydraulic punching machines.
230V single-phase power supply and maximum working pressure 700 bar.
9007 - Simplified electric unit 380v
The 9007 simplified electrical control unit has the same features as its little sister, model 9005, but with a 400V three-phase power supply. It comes with direct control and a standard foot pedal.
Interchangeable with all our power units and can be used with all the equipments less than our hydraulic punching machines.
| Specifications | |
|---|---|
| Power supply voltage | 400V Three-phase |
| Power | 0.75 KW |
| Max working pressure | 700 bar |
| Oil capacity | 5 lt |
| Max cylinder feed capacity | 3 lt |
| Type of oil | Agip Arnica 22 |
| Weight | 24 kg |
9004 - Battery driven control unit
Lightweight electric control unit with ergonomic handle which makes it perfect for on-site work. It has a shoulder strap and as it is very light in weight, it can be used anywhere you choose.
Two speeds available:
- Approach (very fast)
- High pressure (slow)
This unit comes complete with:

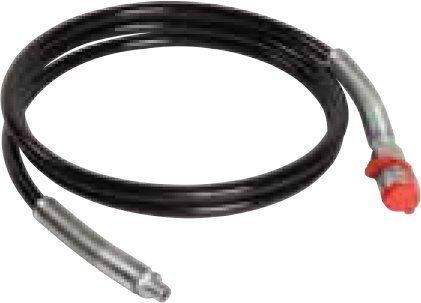

- 2.5m tube

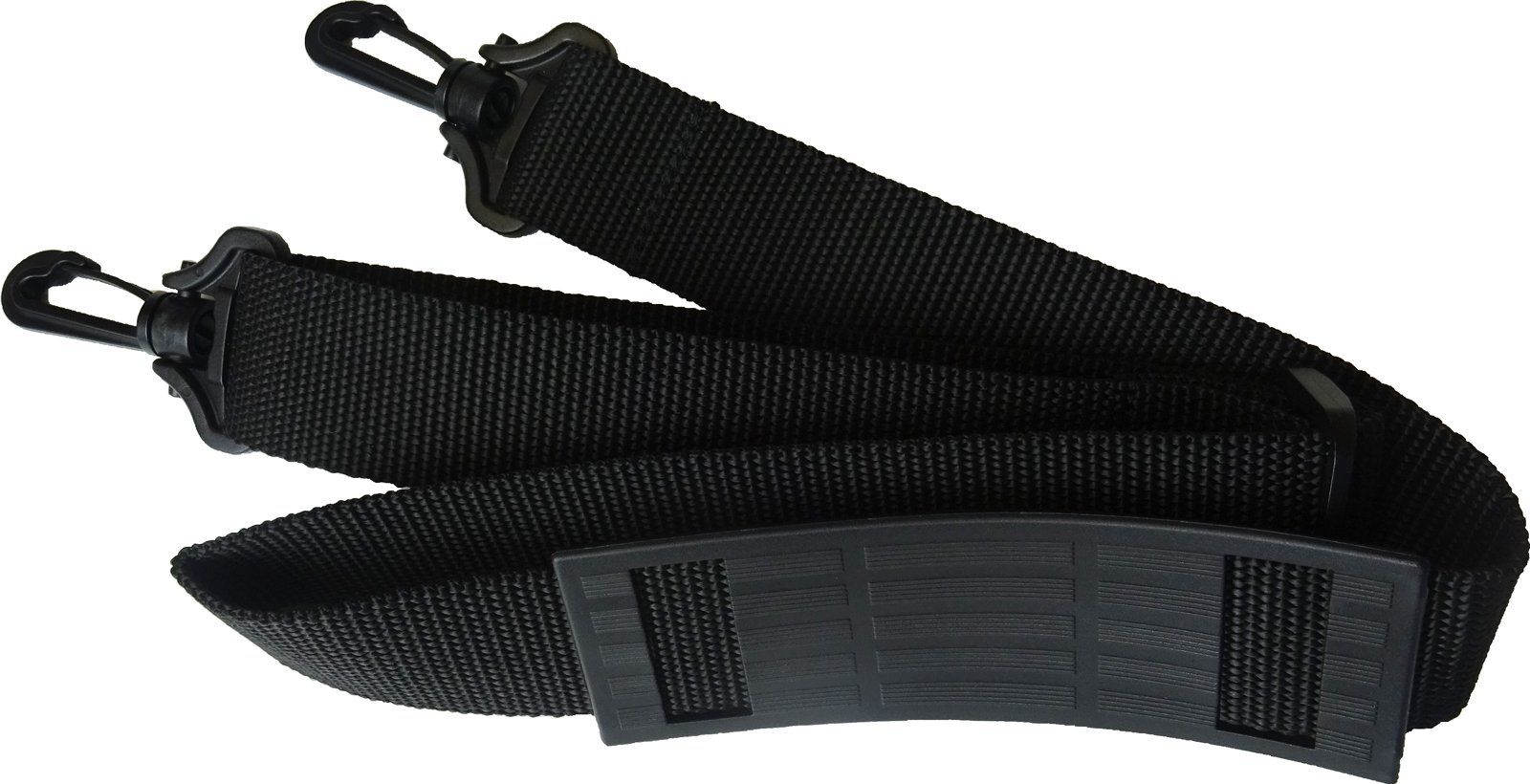

- Adjustable shoulder strap

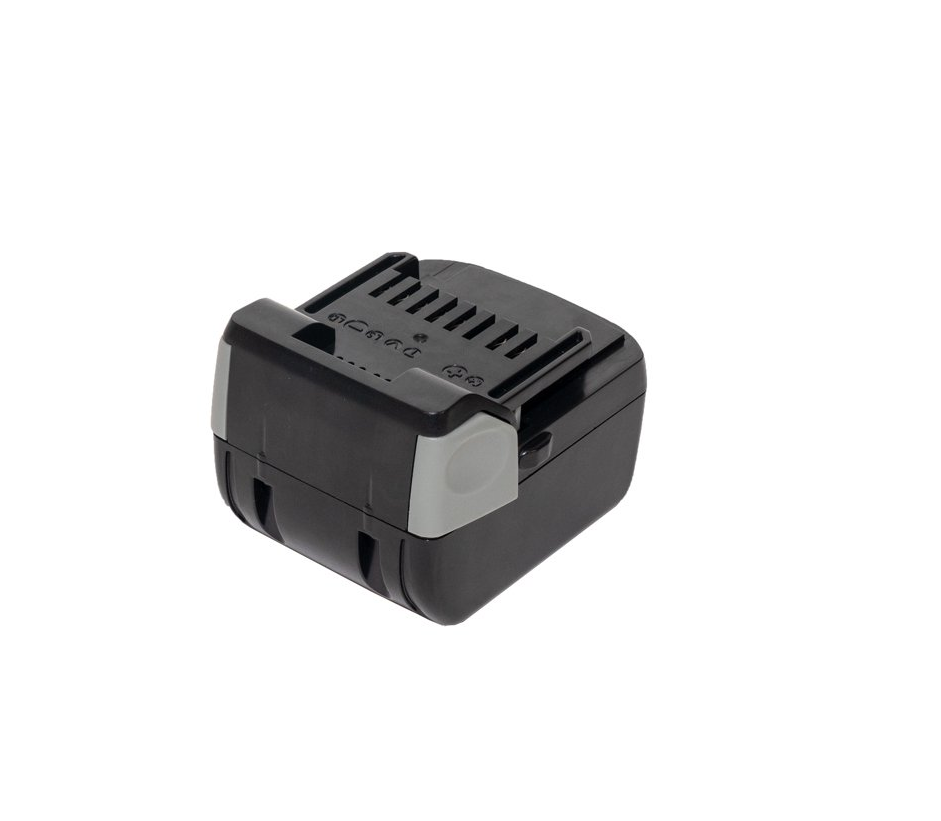

- 1 x Battery 14.4V 4.0Ah

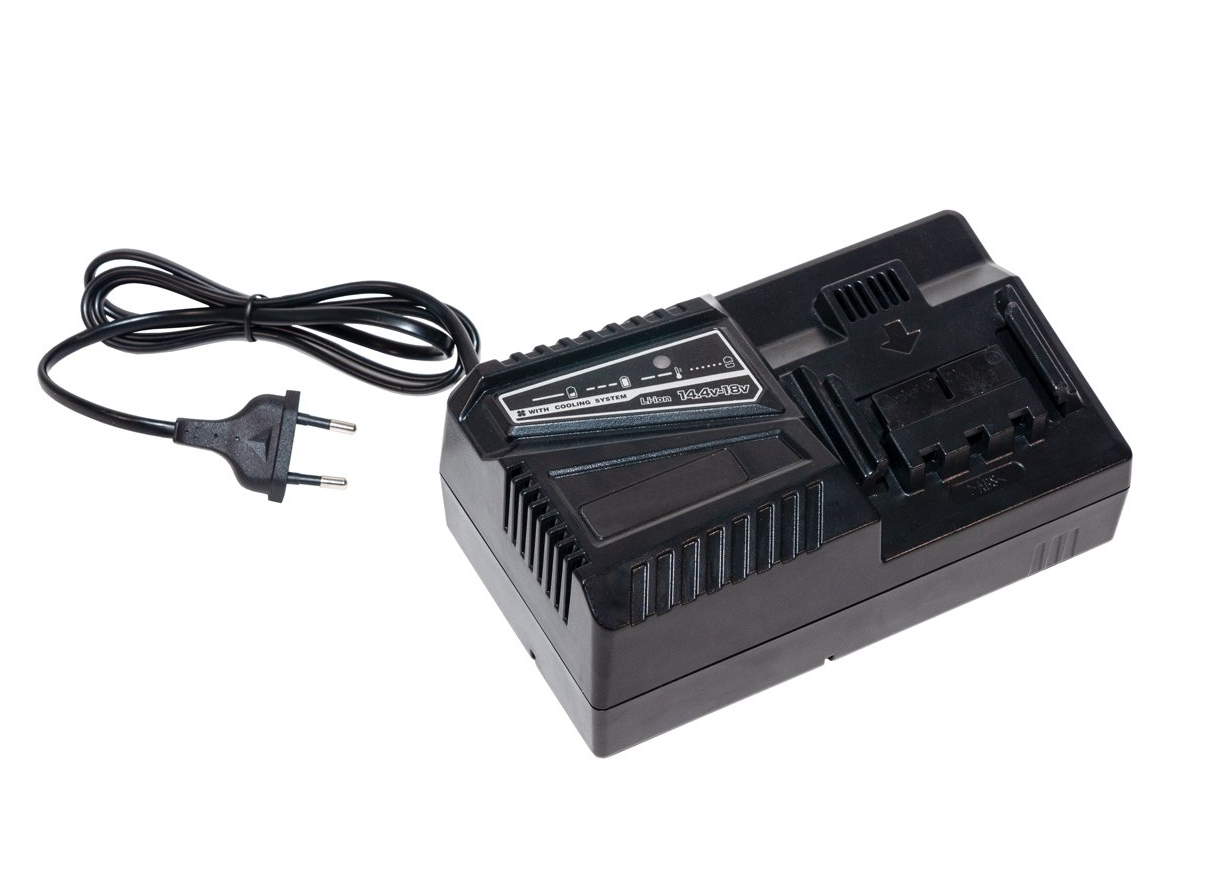

- Battery charger
| Specifications | |
|---|---|
| Weight | 6 kg (with battery and full oil tank) |
| Dimensions | 240 x 120 x 190 mm |
| Tank capacity | 0.6 lt |
| Min.pressure | 20bar |
| Max pressure | 700bar |
| Operating temperature | 5-50°C |
ACCESSORIES SUPPLIED WITH 9004
Download our complete power units, pumps and control units catalogue
Contact our office for information on all electrical control units
